Mitsubishi Outlander: Cup holder
CAUTION:
● Do not drink beverages while driving. This is distracting and could cause an accident.
For the driver’s seat
There is a built-in cup holder in the instrument panel on the driver’s side.
Pressing the centre of the lid causes the tray to pop out a little.
Pull it out completely for use.
NOTE:
● When not using the holder, push the holder to stow it away.
For the front seat
The cup holder is located in front of the floor console box.
For the second seat
1. Allow the armrest to drop down.

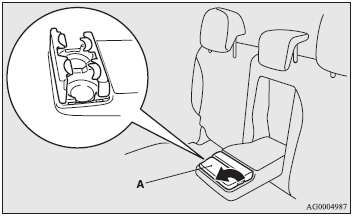

2. Open the lid (A) while holding the side face of the lid with your hand.
