Mitsubishi Outlander: DTC B1C47, B1C48, B1C49, B1C4A, B210D, B212C,  B212D

DTC B1C47: Front Passenger's Seat Belt Pre-tensioner (Squib) System (Shorted to Squib Circuit Ground)

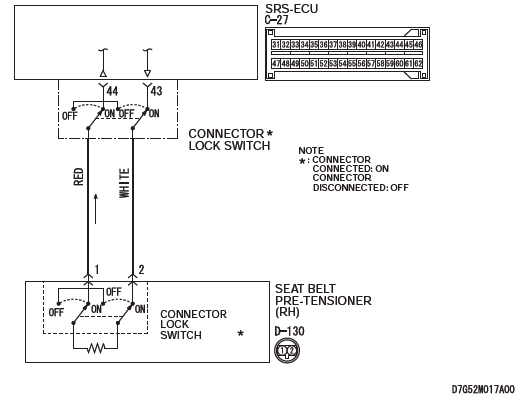

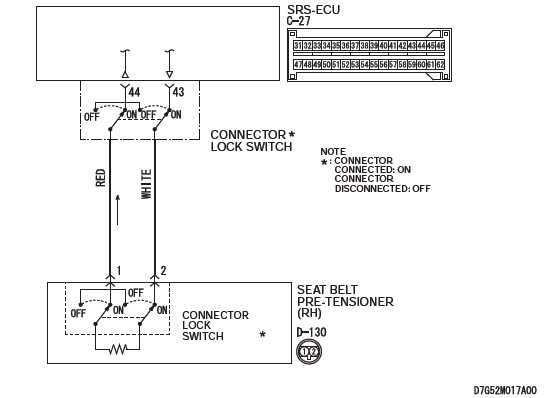

Seat Belt Pre-Tensioner (passenger's side) (Squib) Circuit

CAUTION If DTC B1C47 is set in the SRS-ECU, always diagnose the CAN main bus line.

CIRCUIT OPERATION

The SRS-ECU judges how severe a collision is by detecting signals from the front impact sensors and the front air bag analog G-sensor. If the impact is over a predetermined level, the SRS-ECU sends an ignition signal. At this time, if the front air bag safing G-sensor is on, the pre-tensioner will deploy.

DTC SET CONDITIONS

This DTC is set if there is abnormal resistance between the input terminals of the passenger's seat belt pre-tensioner (squib).

TROUBLESHOOTING HITS

• Damaged wiring harnesses or connectors
• Short to the ground in the passenger's seat belt pre-tensioner (squib) harness
• Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN Communication System)
• MB991865: Dummy resistor
• MB991884: Resister harness

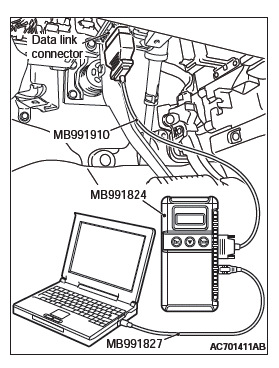

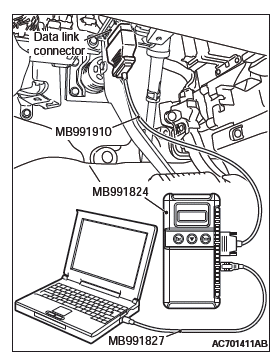

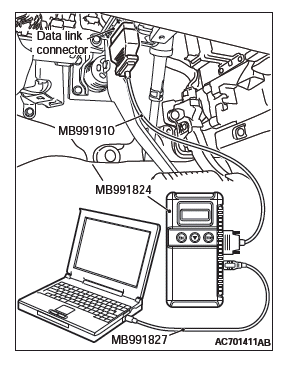

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

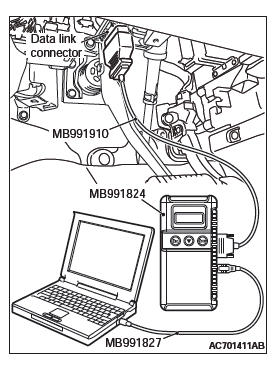

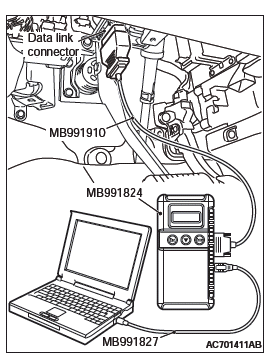

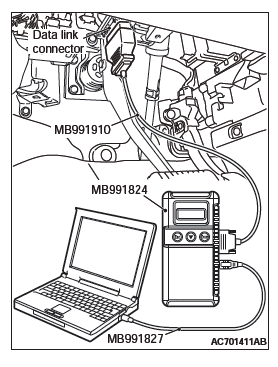

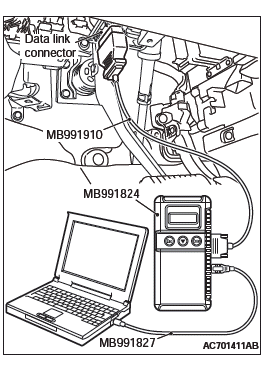

1. Connect scan tool MB991958. Refer to "How to connect the scan tool".
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.

NO : Repair the CAN bus line.

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 3.

NO : There is an intermittent malfunction such as poor engaged connector(s) or open circuit.

STEP 3. Check the passenger's seat belt pre-tensioner.

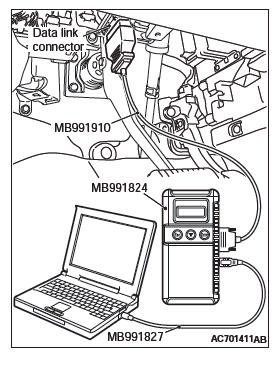

(Using scan tool MB991958, read the diagnostic trouble code.)

1. Disconnect the negative battery terminal.
2. Disconnect passenger's seat belt pre-tensioner connector D-130. Use a flat-tipped screwdriver to unlock the locking button at the harness side connector by withdrawing it toward you in two stages, and then disconnect the connector.

3. Connect special tool MB991865 to special tool MB991884.
4. Connect special tool MB991884 to the D-130 harness side connector.
5. Connect the negative battery terminal.
6. Erase diagnostic trouble code memory, and then check the diagnostic trouble code.

Q: Is DTC B1C47 set?

YES : Go to Step 4.

NO : Replace the passenger's seat belt with pre-tensioner. Then go to Step 6.

STEP 4. Check the passenger's seat belt pre-tensioner circuit. Measure the resistance at the SRS-ECU connector C-27.

1. Disconnect the negative battery terminal.
2. While pushing the part "A" indicated in the figure of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-27 SRS-ECU connector.

DANGER To prevent the seat belt pre-tensioner from deploying unintentionally, disconnect the passenger's seat belt pre-tensioner connector D-130 to short the squib circuit.

3. Disconnect passenger's seat belt pre-tensioner connector D-130. Use a flat-tipped screwdriver to unlock the locking button at the harness side connector by withdrawing it toward you in two stages, and then disconnect the connector.

CAUTION Insert an insulator such as a cable tie to a depth of 4mm (0.16 inch) or more, otherwise the short spring will not be released.

4. Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch) thick] between terminals 43, 44 and the short spring to release the short spring.

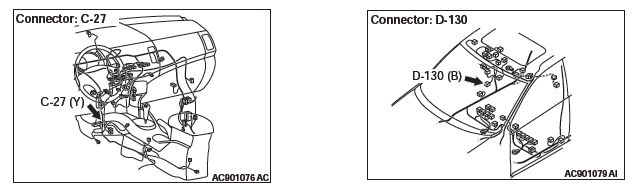

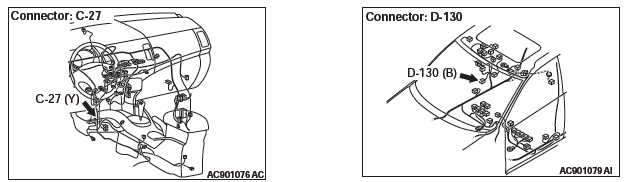

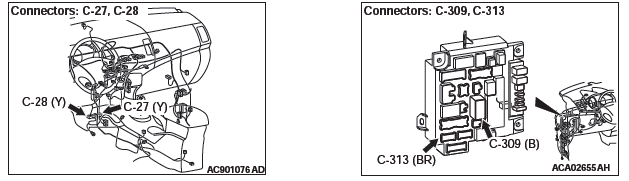

5. Check for continuity between C-27 harness side connector terminals 43, 44 and body ground.

   It should be an open circuit.

Q: Is it open circuit?

YES : Erase the diagnostic trouble code memory, and check the diagnostic trouble code. If DTC B1C47 sets, replace the SRS-ECU. Then go to Step 6.

NO : Go to Step 5.

STEP 5. Check harness wires for short circuit to ground between SRS-ECU connector C-27 (terminal No.43 and 44) and passenger's seat belt pre-tensioner connector D-130 (terminal No.2 and 1).

Q: Is the check result normal?

YES : Go to Step 6.

NO : Repair the harness wires between SRS-ECU connector C-27 and passenger's seat belt pre-tensioner connector D-130. Then go to Step 6.

STEP 6. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B1C47 set?

YES : Return to Step 1.

NO : The procedure is complete.

DTC B1C48: Front Passenger's Seat Belt Pre-tensioner (Squib) System (Shorted to Squib Circuit Power Supply)

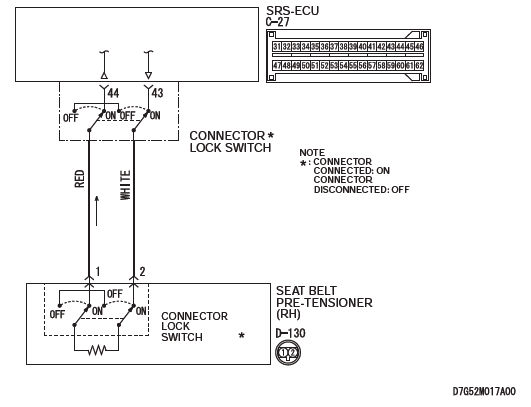

Seat Belt Pre-Tensioner (passenger's side) (Squib) Circuit

CAUTION If DTC B1C48 is set in the SRS-ECU, always diagnose the CAN main bus line.

CIRCUIT OPERATION

The SRS-ECU judges how severe a collision is by detecting signals from the front impact sensors and the front air bag analog G-sensor. If the impact is over a predetermined level, the SRS-ECU sends an ignition signal. At this time, if the front air bag safing G-sensor is on, the pre-tensioner will deploy.

DTC SET CONDITIONS

This DTC is set if there is abnormal resistance between the input terminals of the passenger's seat belt pre-tensioner (squib).

TROUBLESHOOTING HITS

• Damaged wiring harnesses or connectors
• Short to the power supply in the passenger's seat belt pre-tensioner (squib) harness
• Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN Communication System)
• MB991865: Dummy resistor
• MB991884: Resister harness

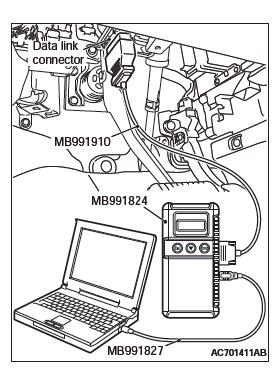

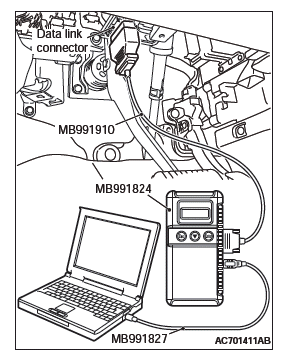

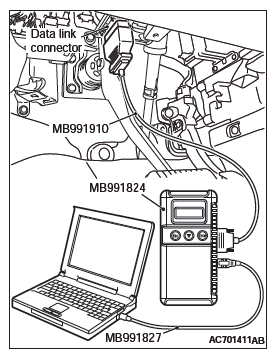

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

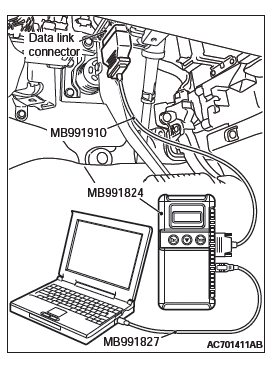

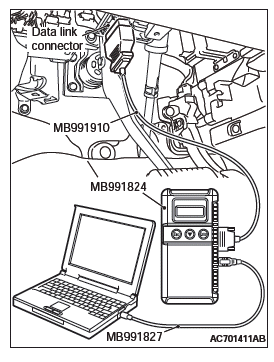

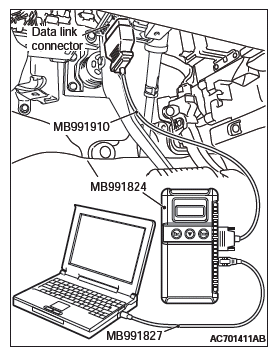

1. Connect scan tool MB991958. Refer to "How to connect the scan tool".
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.

NO : Repair the CAN bus line (Refer to GROUP 54C, Diagnosis).

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 3.

NO : There is an intermittent malfunction such as poor engaged connector(s) or open circuit.

STEP 3. Check the passenger's seat belt pre-tensioner.

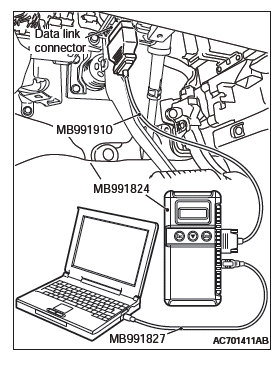

(Using scan tool MB991958, read the diagnostic trouble code.)

1. Disconnect the negative battery terminal.
2. Disconnect passenger's seat belt pre-tensioner connector D-130. Use a flat-tipped screwdriver to unlock the locking button at the harness side connector by withdrawing it toward you in two stages, and then disconnect the connector.

3. Connect special tool MB991865 to special tool MB991884.
4. Connect special tool MB991884 to the D-130 harness side connector.
5. Connect the negative battery terminal.
6. Erase diagnostic trouble code memory, and then check the diagnostic trouble code.

Q: Is DTC B1C48 set?

YES : Go to Step 4.

NO : Replace the passenger's seat belt with pre-tensioner. Then go to Step 6.

STEP 4. Check the passenger's seat belt pre-tensioner circuit. Measure the voltage at the SRS-ECU connector C-27.

1. Disconnect the negative battery terminal.
2. While pushing the part "A" indicated in the figure of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-27 SRS-ECU connector.

DANGER To prevent the seat belt pre-tensioner from deploying unintentionally, disconnect the passenger's seat belt pre-tensioner connector D-130 to short the squib circuit.

3. Disconnect passenger's seat belt pre-tensioner connector D-130. Use a flat-tipped screwdriver to unlock the locking button at the harness side connector by withdrawing it toward you in two stages, and then disconnect the connector.

CAUTION Insert an insulator such as a cable tie to a depth of 4mm (0.16 inch) or more, otherwise the short spring will not be released.

4. Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch) thick] between terminals 43, 44 and the short spring to release the short spring.
5. Connect the negative battery terminal.
6. Ignition switch: "ON".

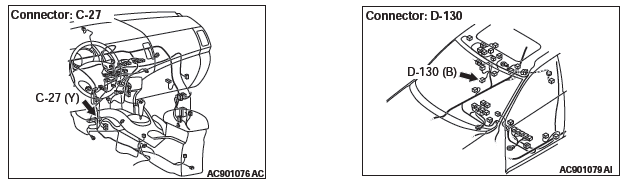

7. Measure the voltage between C-27 harness side connector terminals 43, 44 and body ground.

   Voltage should measure 1 volt or less.

Q: Is the measured voltage within the specified range?

YES : Erase the diagnostic trouble code memory, and check the diagnostic trouble code. If DTC B1C48 sets, replace the SRS-ECU. Then go to Step 6.

NO : Go to Step 5.

STEP 5. Check the harness wires for short circuit to power supply between SRS-ECU connector C-27 (terminal No.43 and 44) and passenger's seat belt pre-tensioner connector D-130 (terminal No.2 and 1).

Q: Is the check result normal?

YES : Go to Step 6.

NO : Repair the harness wires between SRS-ECU connector C-27 and passenger's seat belt pre-tensioner connector D-130. Then go to Step 6.

STEP 6. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B1C48 set?

YES : Return to Step 1.

NO : The procedure is complete.

DTC B1C49: Front Passenger's Seat Belt Pre-tensioner (Squib) System (Squib Circuit Open)

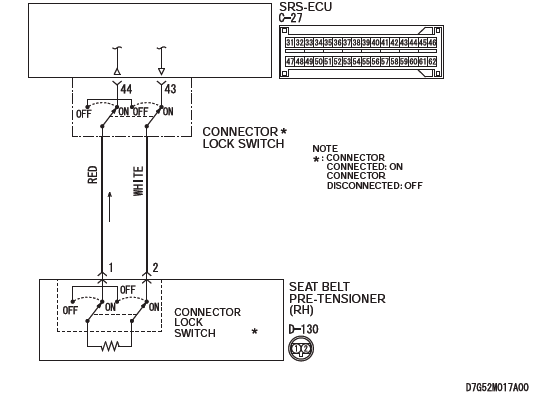

Seat Belt Pre-Tensioner (passenger's side) (Squib) Circuit

CAUTION If DTC B1C49 is set in the SRS-ECU, always diagnose the CAN main bus line.

CIRCUIT OPERATION

The SRS-ECU judges how severe a collision is by detecting signals from the front impact sensors and the front air bag analog G-sensor. If the impact is over a predetermined level, the SRS-ECU sends an ignition signal. At this time, if the front air bag safing G-sensor is on, the pre-tensioner will deploy.

DTC SET CONDITIONS

This DTC is set if there is abnormal resistance between the input terminals of the passenger's seat belt pre-tensioner (squib).

TROUBLESHOOTING HITS

• Open circuit in the passenger's seat belt pre-tensioner (squib) circuit
• Improper connector contact
• Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN Communication System)
• MB991865: Dummy resistor
• MB991884: Resister harness

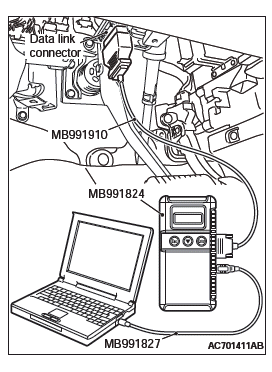

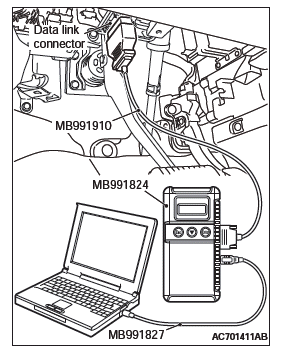

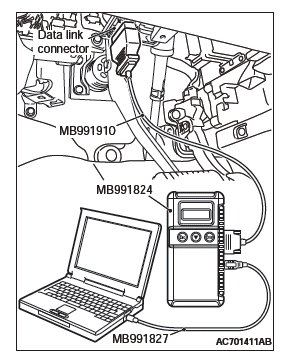

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

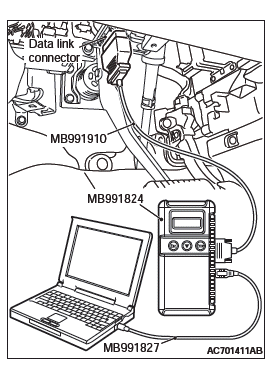

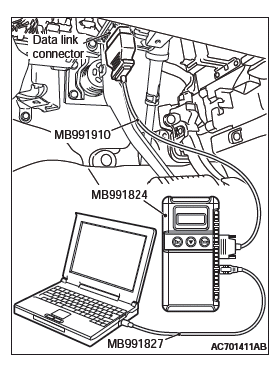

1. Connect scan tool MB991958. Refer to "How to connect the scan tool".
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.

NO : Repair the CAN bus line.

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 3.

NO : There is an intermittent malfunction such as poor engaged connector(s) or open circuit.

STEP 3. Check the passenger's seat belt pre-tensioner.

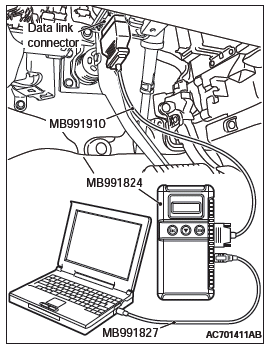

(Using scan tool MB991958, read the diagnostic trouble code.)

1. Disconnect the negative battery terminal.
2. Disconnect passenger's seat belt pre-tensioner connector D-130. Use a flat-tipped screwdriver to unlock the locking button at the harness side connector by withdrawing it toward you in two stages, and then disconnect the connector.

3. Connect special tool MB991865 to special tool MB991884.
4. Connect special tool MB991884 to the D-130 harness side connector.
5. Connect the negative battery terminal.
6. Erase diagnostic trouble code memory, and then check the diagnostic trouble code.

Q: Is DTC B1C49 set?

YES : Go to Step 4.

NO : Replace the passenger's seat belt with pre-tensioner. Then go to Step 5.

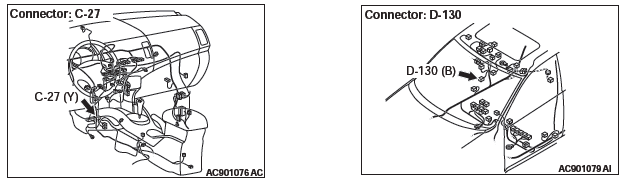

STEP 4. Check the harness for open circuit between SRS-ECU connector C-27 (terminal No.43 and 44) and the passenger's seat belt pre-tensioner connector D-130 (terminal No.2 and 1).

1. Disconnect the negative battery terminal.
2. While pushing the part "A" indicated in the figure of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-27 SRS-ECU connector.

DANGER To prevent the seat belt pre-tensioner from deploying unintentionally, disconnect the passenger's seat belt pre-tensioner connector D-130 to short the squib circuit.

3. Disconnect SRS-ECU connector C-27 and passenger's seat belt pre-tensioner connector D-130. For connector D-130, use a flat-tipped screwdriver to unlock the locking button at the harness side connector by withdrawing it toward you in two stages, and then disconnect the connector.

CAUTION Insert an insulator such as a cable tie to a depth of 4mm (0.16 inch) or more, otherwise the short spring will not be released.

4. Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch) thick] between terminals 43, 44 and the short spring to release the short spring.

5. Connect D-130 harness side connector to special tool MB991884.

6. Check for continuity between the following terminals. It should be less than 2 ohms.

• SRS-ECU connector C-27 (terminal No.43) and the special tool (terminal No.1)
• SRS-ECU connector C-27 (terminal No.44) and the special tool (terminal No.2)

Q: Does continuity exist?

YES : Erase the diagnostic trouble code memory, and check the diagnostic trouble code. If DTC B1C49 sets, replace the SRS-ECU. Then go to Step 5.

NO : Repair the harness wires between SRS-ECU connector C-27 passenger's seat belt pre-tensioner connector D-130. Then go to Step 5.

STEP 5. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B1C49 set?

YES : Return to Step 1.

NO : The procedure is complete.

DTC B1C4A: Front Passenger's Seat Belt Pre-tensioner (Squib) System (Short Circuit Between Squib Circuit Terminals)

Seat Belt Pre-Tensioner (passenger's side) (Squib) Circuit

CAUTION If DTC B1C4A is set in the SRS-ECU, always diagnose the CAN main bus line.

CIRCUIT OPERATION

The SRS-ECU judges how severe a collision is by detecting signals from the front impact sensors and the front air bag analog G-sensor. If the impact is over a predetermined level, the SRS-ECU sends an ignition signal. At this time, if the front air bag safing G-sensor is on, the pre-tensioner will deploy.

DTC SET CONDITIONS

This DTC is set if there is abnormal resistance between the input terminals of the passenger's seat belt pre-tensioner (squib).

TROUBLESHOOTING HITS

• Improper engaged connector or defective short spring*
• Short circuit between the passenger's seat belt pre-tensioner (squib) circuit terminals
• Damaged connector(s)
• Malfunction of the SRS-ECU

NOTE: *: The squib circuit connectors integrate a "short" spring (which prevents the seat belt pre-tensioner from deploying unintentionally due to static electricity by shorting the positive wire to the ground wire in the squib circuit when the connectors are disconnected). Therefore, if connector C-27 or D-130 is damaged or improperly engaged, the short spring may not be released when the connector is connected.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN Communication System)
• MB991865: Dummy resistor
• MB991884: Resister harness

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958. Refer to "How to connect the scan tool".
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.

NO : Repair the CAN bus line.

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 3.

NO : There is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction).

STEP 3. Check SRS-ECU connector C-27 and passenger's seat belt pre-tensioner connector D-130. (Using scan tool MB991958, read the diagnostic trouble code.)

1. Disconnect the negative battery terminal.
2. While pushing the part "A" indicated in the figure of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-27 SRS-ECU connector. Then connect the connector.

3. After disconnecting the D-130 harness side connectors, connect the connectors again. For the D-130 connector disconnection, use a flat-tipped screwdriver to unlock the locking button at the harness side connector by withdrawing it toward you in two stages, and then disconnect the connector.
4. Connector the negative battery terminal.
5. Erase the diagnostic trouble code memory, and check the diagnostic trouble code.

Q: Is DTC B1C4A set?

YES : Go to Step 4.

NO : The procedure is complete. It is assumed that DTC B1C4A set because connector C-27 or D-130 was engaged improperly.

STEP 4. Check the passenger's seat belt pre-tensioner.

(Using scan tool MB991958, read the diagnostic trouble code.)

1. Disconnect the negative battery terminal.
2. While pushing the part "A" indicated in the figure of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-27 SRS-ECU connector.

3. Disconnect passenger's seat belt pre-tensioner connector D-130. Use a flat-tipped screwdriver to unlock the locking button at the harness side connector by withdrawing it toward you in two stages, and then disconnect the connector.

4. Connect special tool MB991865 to special tool MB991884.
5. Connect special tool MB991884 to the D-130 harness side connector.
6. Connect the negative battery terminal.
7. Erase diagnostic trouble code memory, and then check the diagnostic trouble code.

Q: Is DTC B1C4A set?

YES : Go to Step 5.

NO : Replace the passenger's seat belt with pre-tensioner. Then go to Step 7.

STEP 5. Check the passenger's seat belt pre-tensioner circuit. Measure the resistance at the SRS-ECU connector C-27.

1. Disconnect the negative battery terminal.
2. While pushing the part "A" indicated in the figure of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-27 SRS-ECU connector.

DANGER To prevent the seat belt pre-tensioner from deploying unintentionally, disconnect the passenger's seat belt pre-tensioner connector D-130 to short the squib circuit.

3. Disconnect passenger's seat belt pre-tensioner connector D-130. Use a flat-tipped screwdriver to unlock the locking button at the harness side connector by withdrawing it toward you in two stages, and then disconnect the connector.

CAUTION Insert an insulator such as a cable tie to a depth of 4mm (0.16 inch) or more, otherwise the short spring will not be released.

4. Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch) thick] between terminals 43, 44 and the short spring to release the short spring.

5. Check for continuity between C-27 harness side connector terminals 43 and 44.

   It should be an open circuit.

Q: Is it open circuit?

YES : Erase the diagnostic trouble code memory, and check diagnostic trouble code. If DTC B1C4A set, replace the SRS-ECU. Then go to Step 7.

NO : Go to Step 6.

STEP 6. Check the harness for short circuit between SRS-ECU connector C-27 (terminal No.43 and 44) and passenger's seat belt pre-tensioner connector D-130 (terminal No.2 and 1).

Q: Is the check result normal?

YES : Go to Step 7.

NO : Repair the harness wires between SRS-ECU connector C-27 and passenger's seat belt pre-tensioner connector D-130. Then go to Step 7.

STEP 7. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B1C4A set?

YES : Return to Step 1.

NO : The procedure is complete.

DTC B210D: Battery Abnormal Low Voltage

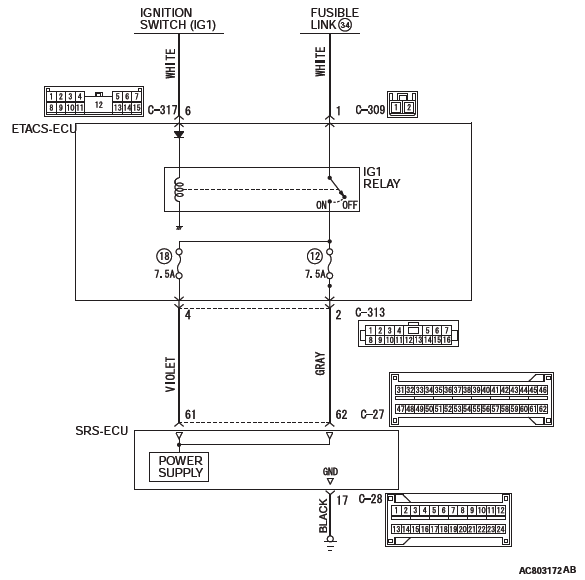

IG1 Power Supply Circuit

CAUTION If the diagnostic trouble code B210D is set in the SRS-ECU, always diagnose the CAN main bus line.

CIRCUIT OPERATION

• The SRS-ECU is powered from the fusible link (34).
• The SRS-ECU power is supplied from two circuits.

  Even if one circuit is shut off, the air bag can inflate.

DTC SET CONDITIONS

The code is set when the battery voltage becomes low or when the open circuit occurs to the power supply circuit.

TROUBLESHOOTING HINTS

• Battery voltage low voltage
• Open circuit to power supply circuit
• Damaged wiring harnesses or connectors
• Malfunction of the SRS-ECU
• Malfunction of ETACS-ECU

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. Power supply fuse number 12, 18 check.

Q: Is the fuse in good condition?

YES : Go to Step 3.

NO : Go to Step 2.

STEP 2. Wiring harness check between the C-313 ETACS-ECU connector terminal No. 4/2 and the C-27 SRS-ECU connector terminal No. 61/62.

• Short circuit check for SRS-ECU power supply wire

Q: Is the check result normal?

YES : Replace the power supply fuse.

NO : Repair the wiring harness. And than replace the power supply fuse.

STEP 3. Battery check. Q: Is the check result normal?

YES : Go to Step 4.

NO : Charge or replace the battery.

STEP 4. Measure the voltage at the ETACS-ECU connector.

1. Disconnect the C-309 ETACS-ECU connector.
2. Measure the voltage between the C-309 harness side connector terminal No. 1 and the body ground.

The voltage should measure 12 volts (battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery positive voltage)?

YES : Go to Step 6.

NO : Go to Step 5.

STEP 5. Wiring harness check between the fusible link (34) and the C-309 ETACS-ECU connector terminal No. 1.

• Open circuit check for ETACS-ECU power supply wire

Q: Is the check result normal?

YES : Go to Step 10.

NO : Repair the wiring harness.

STEP 6. Using scan tool MB991958, diagnose the ETACS.

CAUTION To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958. Refer to "How to connect the scan tool".
2. Erase the DTC.
3. Turn the ignition switch to the "ON" position.
4. Check if the DTC is set.
5. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Diagnose the ETACS.

NO : Check the input signal of ETACS-ECU ignition switch (IG1). Than go to step 7.

STEP 7. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958. Refer to "How to connect the scan tool".
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 8.

NO : Repair the CAN bus line.

STEP 8. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 9.

NO : There is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction).

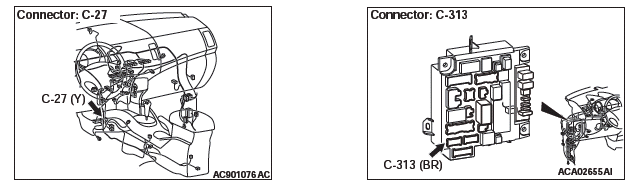

STEP 9. Check the harness for open circuit between SRS-ECU connector C-27 (terminal No.61 and 62) and the ETACS-ECU connector C-313 (terminal No.4 and 2).

1. Disconnect the negative battery terminal.
2. While pushing the part "A" indicated in the figure of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-27 SRS-ECU connector.
3. Disconnect the ETACS-ECU connector C-313.

4. Check for continuity between the following terminals. It should be less than 2 ohms.

<Fuse No.12>

• SRS-ECU connector C-27 (terminal No.62) and the ETACS-ECU connector C-313 (terminal No.2)

<Fuse No.18>

• SRS-ECU connector C-27 (terminal No.61) and the ETACS-ECU connector C-313 (terminal No.4)

Q: Does continuity exist?

YES : Go to Step 10.

NO : Repair the harness wire between SRS-ECU connector C-27 and the ETACS-ECU connector C-313.

STEP 10. Measure the voltage at the C-27 SRS-ECU connector.

1. Disconnect the negative battery terminal.
2. While pushing the part "A" indicated in the figure of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-27 SRS-ECU connector.
3. Connect the negative battery terminal.
4. Ignition switch: ON

5. Take the measurements below at the C-27 harness side connector.

• Voltage between terminal No. 61/62 and body ground.

  OK: 9 V or more

Q: Is the measured voltage within the specified range?

YES : Go to Step 11.

NO : Replace the ETACS-ECU.

STEP 11. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B210D set?

YES : Replace the SRS-ECU.

NO : There is an intermittent malfunction such as poor engaged connector(s) or open circuit.

DTC B212C: Open Circuit to IG1 Power Supply (Fuse No.12 Circuit)
DTC B212D: Open Circuit to IG1 Power Supply (Fuse No.18 Circuit)

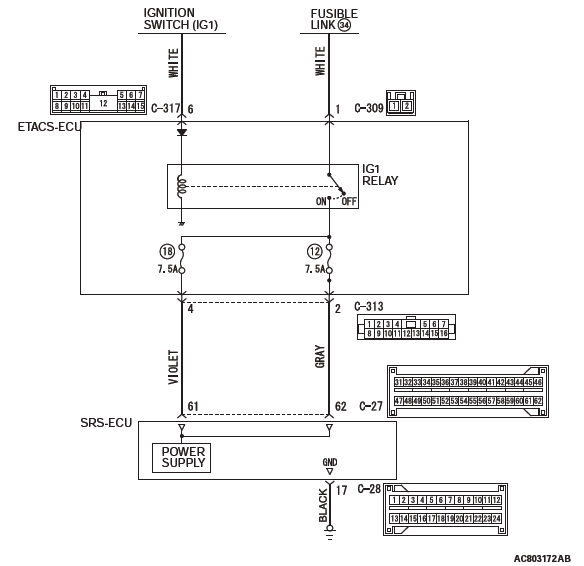

IG1 Power Supply Circuit

CAUTION If DTC B212C (Fuse No.12) or B212D (Fuse No.18) is set in the SRS-ECU, always diagnose the CAN main bus lines.

CIRCUIT OPERATION

• The SRS-ECU is powered from the fusible link (34).
• The SRS-ECU power is supplied from two circuits.

  Even if one circuit is shut off, the air bag can inflate.

DTC SET CONDITIONS

This code is set when an open circuit occurs in the power supply circuit to the SRS-ECU (terminal No.61) or in the power supply circuit to the SRS-ECU (terminal No.62). Also, if the code No. B212C and B212D are set at the same time, the battery voltage may have dropped. Therefore, check the battery first.

TROUBLESHOOTING HINTS

• Open circuit to power supply circuit
• Damaged wiring harnesses or connectors
• Malfunction of the SRS-ECU
• Malfunction of ETACS-ECU

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. Power supply fuse number 12,18 check.

Q: Is the fuse in good condition?

YES : Go to Step 3.

NO : Go to Step 2

STEP 2. Check for a blown fuse.

1. Replace the fuse.
2. Turn the ignition switch to the "ON" position, wait for at least one minute and then turn the switch off.
3. Check the fuse.

Q: Is the fuse in good condition?

YES : Go to Step 3.

NO : Repair the wiring harness between the C-313 ETACS-ECU connector terminal No. 4/2 and the C-27 SRS-ECU connector terminal No. 61/62, and replace the power supply fuse.

STEP 3. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958. Refer to "How to connect the scan tool".
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 4.

NO : Repair the CAN bus line.

STEP 4. Using scan tool MB991958, diagnose the ETACS.

CAUTION To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958. Refer to "How to connect the scan tool".
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Diagnose the ETACS.

NO : Check the input signal of ETACS-ECU ignition switch (IG1). Than go to step 5.

STEP 5. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 6.

NO : There is an intermittent malfunction such as poor engaged connector(s) or open circuit.

STEP 6. Resistance measurement at the C-28 SRS-ECU connector.

1. While pushing the part "A" indicated in the figure of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-28 SRS-ECU connectors.

2. Take the measurements below at the C-28 wiring harness side connectors. It should be less than 2 ohms.

• Continuity between C-28 wiring harness side connector terminal No. 17 and body ground

Q: Does continuity exist?

YES : Go to Step 7.

NO : Repair the wiring harness between the C-28 SRS-ECU connector terminal No. 17 and the ground.

STEP 7. Measure the voltage at the C-27 SRS-ECU connector.

1. Disconnect the negative battery terminal.
2. While pushing the part "A" indicated in the figure of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-27 SRS-ECU connector.
3. Connect the negative battery terminal.
4. Ignition switch: ON

5. Take the measurements below at the C-27 harness side connector.

• Voltage between terminal No. 61/62 and body ground.

  OK: 9 V or more

Q: Is the measured voltage within the specified range?

YES : Go to Step 9.

NO : Go to Step 8.

STEP 8. Check the harness for open circuit between SRS-ECU connector C-27 (terminal No.61 and 62) and the ETACS-ECU connector C-313 (terminal No.4 and 2).

1. Disconnect the negative battery terminal.
2. While pushing the part "A" indicated in the figure of the harness side connector, turn the lock lever to the direction of the arrow to release the lock lever, and disconnect the C-27 SRS-ECU connector.
3. Disconnect the ETACS-ECU connector C-313.

4. Check for continuity between the following terminals. It should be less than 2 ohms.

<Fuse No.12>

• SRS-ECU connector C-27 (terminal No.62) and the ETACS-ECU connector C-313 (terminal No.2)

<Fuse No.18>

• SRS-ECU connector C-27 (terminal No.61) and the ETACS-ECU connector C-313 (terminal No.4)

Q: Does continuity exist?

YES : Replace the ETACS-ECU.

NO : Repair the harness wire between SRS-ECU connector C-27 and the ETACS-ECU connector C-313.

STEP 9. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to the "ON" position.
3. Check if the DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B212C <Fuse No.12 circuit> or B212D <Fuse No.18 circuit> set?

YES : Replace the SRS-ECU.

NO : There is an intermittent malfunction such as poor engaged connector(s) or open circuit (Refer to GROUP 00, How to Cope with Intermittent Malfunction).

DTC B2207: Occupant Restraint Controller Internal 1
DTC B2208: Occupant Restraint Controller Internal 2
DTC B2209: Occupant Restraint Controller Internal 3
DTC B220A: Occupant Restraint Controller Internal 4
DTC B220B: Occupant Restraint Controller Firing Stored Energy
DTC B220C: Occupant Restraint Controller Accelerometer 1
DTC B220D: Occupant Restraint Controller Accelerometer 2

CAUTION If DTCs are set in the SRS-ECU, always diagnose the CAN main bus line.

DTC SET CONDITION

The above DTC is set if an abnormality is detected in the circuit inside the SRS-ECU.

TROUBLESHOOTING HINTS

Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958. Refer to "How to connect the scan tool".
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.

NO : Repair the CAN bus line.

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Turn the ignition switch to the "ON" position.
2. Check if the DTC is set.
3. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Are any "Stored" or "Active" DTCs set?

YES : Replace the SRS-ECU.

NO : There is an intermittent malfunction such as poor engaged connector(s) or open circuit.

DTC B223D: OCM (occupant classification-ECU) DTC Present

CAUTION If DTC B223D is set in the SRS-ECU, always diagnose the CAN main bus line.

DTC SET CONDITION

It is set if a DTC occurs in the occupant classification- ECU.

TROUBLESHOOTING HINTS

• Malfunction of the SRS-ECU
• Malfunction of the occupant classification-ECU

DIAGNOSIS

Required Special Tool:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958. Refer to "How to connect the scan tool".
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.

NO : Repair the CAN bus line.

STEP 2. Recheck for diagnostic trouble code.

Check that the DTC is set in the occupant classification-ECU.

Q: Is the DTC set?

YES : Diagnose the occupant classification-ECU.

NO : Go to Step 3

STEP 3. Recheck for diagnostic trouble code.

Check again if the DTC is set to the SRS-ECU.

1. Erase the DTC.
2. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
3. Check if DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Replace the SRS-ECU.

NO : There is an intermittent malfunction such as poor engaged connector(s) or open circuit.

DTC B2255: Occupant Restraint Controller Roll-over Feature Disabled

CAUTION If DTC B2255 is set in the SRS-ECU, always diagnose the CAN main bus line.

DTC SET CONDITION

The above DTC is set if an abnormality is detected in the circuit inside the SRS-ECU.

TROUBLESHOOTING HINTS

Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958. Refer to "How to connect the scan tool".
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.

NO : Repair the CAN bus line.

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.

1. Turn the ignition switch to the "ON" position.
2. Check if the DTC is set.
3. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC output regardless of "Active" or "Stored" faults?

YES : Replace the SRS-ECU.

NO : There is an intermittent malfunction such as poor engaged connector(s) or open circuit.

READ NEXT:
