Mitsubishi Outlander: Transaxle

DISASSEMBLY AND ASSEMBLY

CAUTION

• Use a fluid of the designated brand for transmission fluid. Use of transmission fluid not specified by the manufacturer can affect driveability and the durability of the automatic transmission, and can even lead to damage to the transmission.
• Perform disassembly work in a clean, dustproof room.
• Wash sand and mud adhering to the outside of the transaxle well using steam or washing oil outside a dustproof room before disassembly to prevent them from entering the inside during disassembly and assembly. (Do not blow steam in the inside of the transaxle or wash rubber-made parts with washing oil.)
• Pull out the torque converter from the transaxle after it is cleaned and drain transmission fluid.
• During the disassembly and assembly work, always use bare hands or vinyl gloves.
• Do not touch internal parts with your hands which touched the outside of the transaxle. (Wash your hands before touching internal parts.)
• Use paper towels instead of cotton gloves and shop towels to prevent entry of lint.
• Check the normal condition before performing disassembly and assembly work.
• Do not reuse drained transmission fluid.

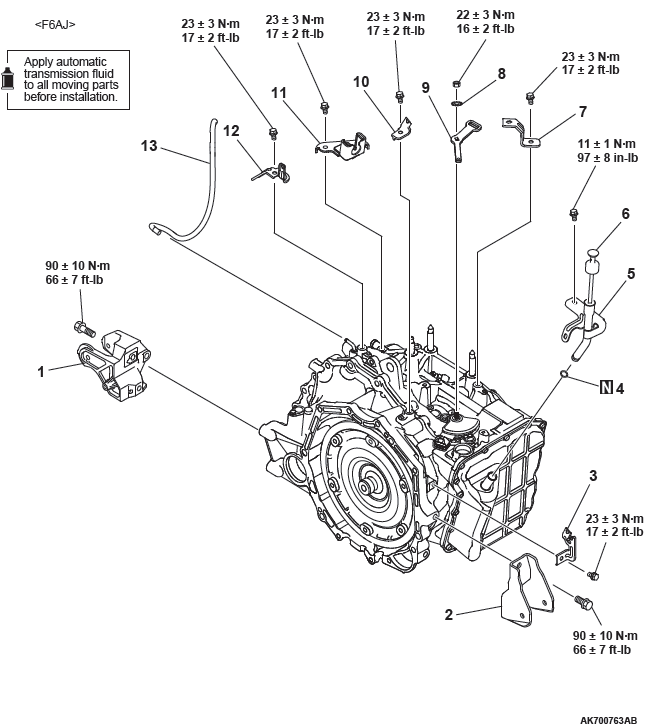

<F6AJ>

1. RR roll stopper bracket
2. FR roll stopper bracket
3. Corrugate clamp bracket
4. O-ring
5. Oil filler tube
6. Oil level gauge
7. Harness bracket
8. Spring washer
9. Manual control lever
10. Corrugate clamp bracket
11. Control cable bracket
12. Corrugate clamp bracket
13. Breather hose

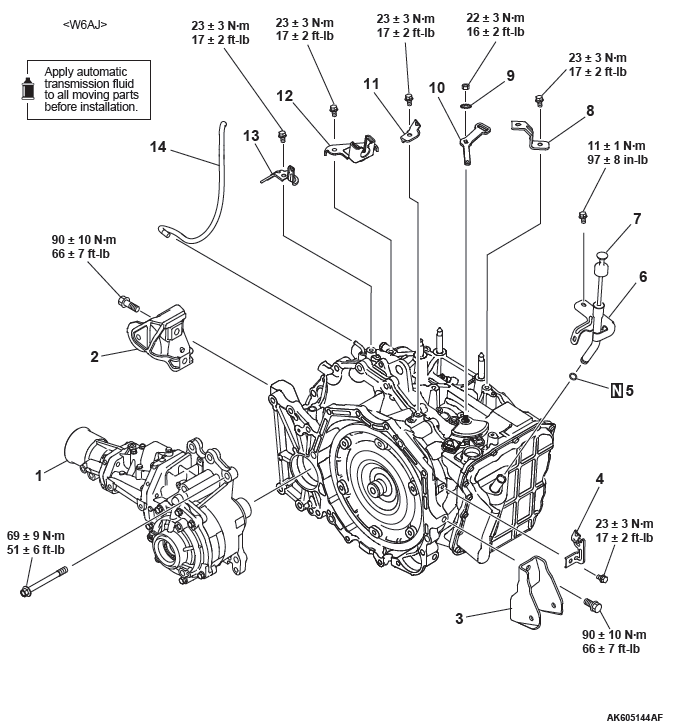

<W6AJ>

1. Transfer assembly
2. RR roll stopper bracket
3. FR roll stopper bracket
4. Corrugate clamp bracket
5. O-ring
6. Oil filler tube
7. Oil level gauge
8. Harness bracket
9. Spring washer
10. Manual control lever
11. Corrugate clamp bracket
12. Control cable bracket
13. Corrugate clamp bracket
14. Breather hose

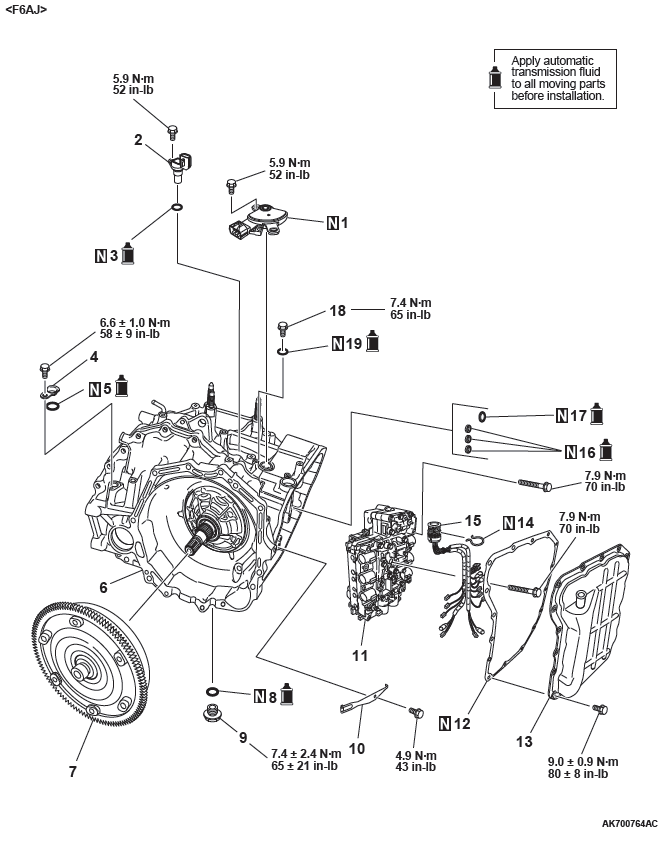

<F6AJ>

1. Park/neutral position switch
2. Turbine sensor
3. O-ring
4. Baffle plate
5. O-ring
6. Transaxle assembly
7. Torque converter
8. O-ring
9. ATF adjusting bolt
10. Detent spring
11. Control valve assembly
12. Control valve cover gasket
13. Control valve cover
14. Snap ring
15. Terminal assembly
16. Lip seal
17. Lip seal
18. Pressure test port bolt
19. O-ring

<W6AJ>

1. Park/neutral position switch
2. Turbine sensor
3. O-ring
4. Baffle plate
5. O-ring
6. Transaxle assembly
7. Torque converter
8. O-ring
9. ATF adjusting bolt
10. Detent spring
11. Control valve assembly
12. Control valve cover gasket
13. Control valve cover
14. Snap ring
15. Terminal assembly
16. Lip seal
17. Lip seal
18. Pressure test port bolt
19. O-ring

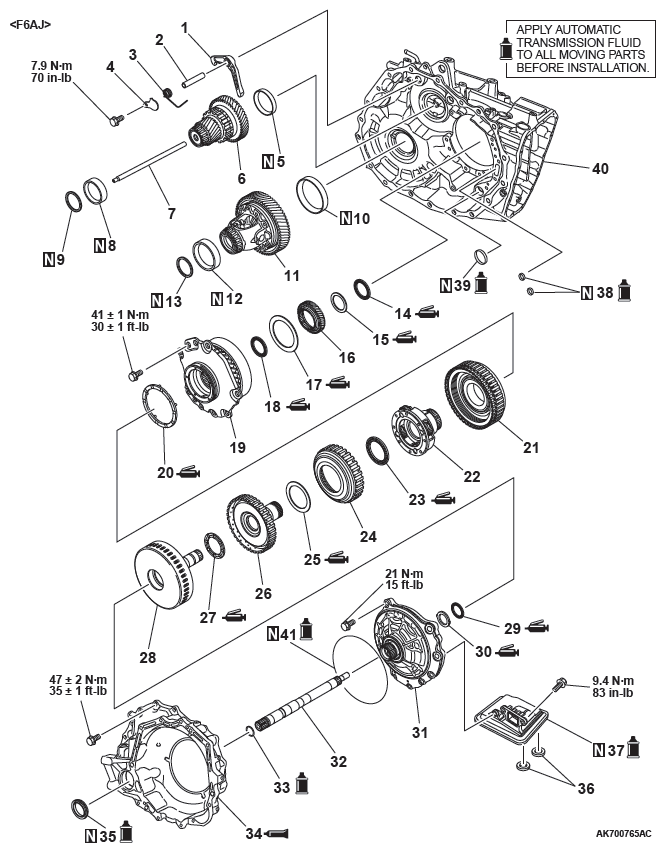

<F6AJ>

1. Parking pawl
2. Parking pawl shaft
3. Return spring
4. Pawl shaft plate
5. Outer race
6. Reduction gear assembly
7. Reduction gear lubrication tube
8. Outer race
9. Reduction gear taper bearing shim
10. Outer race
11. Differential assembly
12. Outer race
13. Differential taper bearing shim
14. Needle bearing
15. Bearing race
16. RR sun gear (front side)
17. Bearing race
18. Needle bearing
19. Output gear set
20. Thrust washer
21. Low clutch assembly
22. FR carrier
23. Needle bearing
24. FR internal gear
25. Needle bearing
26. FR sun gear
27. Needle bearing
28. 3-5 Reverse clutch assembly
29. Needle bearing
30. Bearing race
31. Oil pump assembly
32. Input shaft
33. O-ring
34. Converter housing
35. Side oil seal
36. Magnet
37. Oil strainer
38. O-ring
39. O-ring
40. Transaxle case
41. O-ring

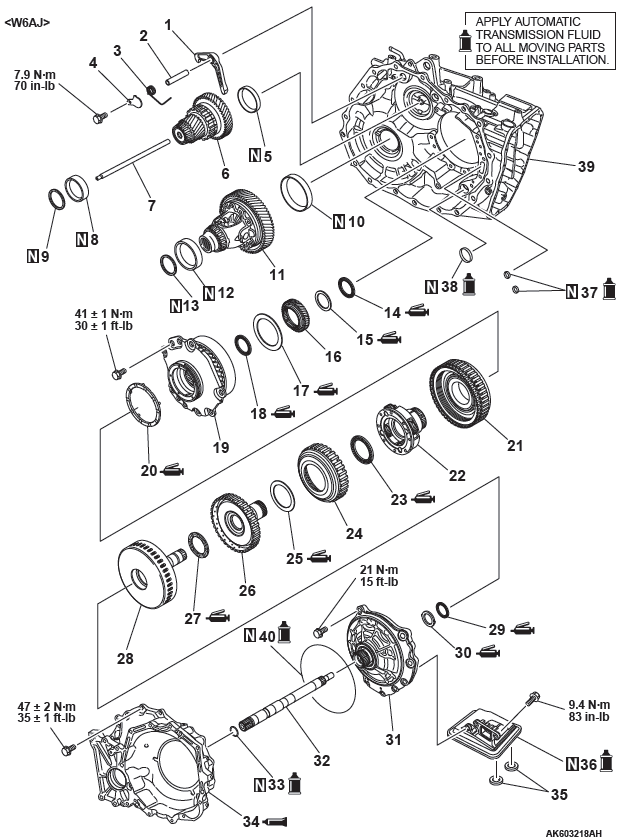

<W6AJ>

1. Parking pawl
2. Parking pawl shaft
3. Return spring
4. Pawl shaft plate
5. Outer race
6. Reduction gear assembly
7. Reduction gear lubrication tube
8. Outer race
9. Reduction gear taper bearing shim
10. Outer race
11. Differential assembly
12. Outer race
13. Differential taper bearing shim
14. Needle bearing
15. Bearing race
16. RR sun gear (front side)
17. Bearing race
18. Needle bearing
19. Output gear set
20. Thrust washer
21. Low clutch assembly
22. FR carrier
23. Needle bearing
24. FR internal gear
25. Needle bearing
26. FR sun gear
27. Needle bearing
28. 3-5 Reverse clutch assembly
29. Needle bearing
30. Bearing race
31. Oil pump assembly
32. Input shaft
33. O-ring
34. Converter housing
35. Magnet
36. Oil strainer
37. O-ring
38. O-ring
39. Transaxle case
40. O-ring

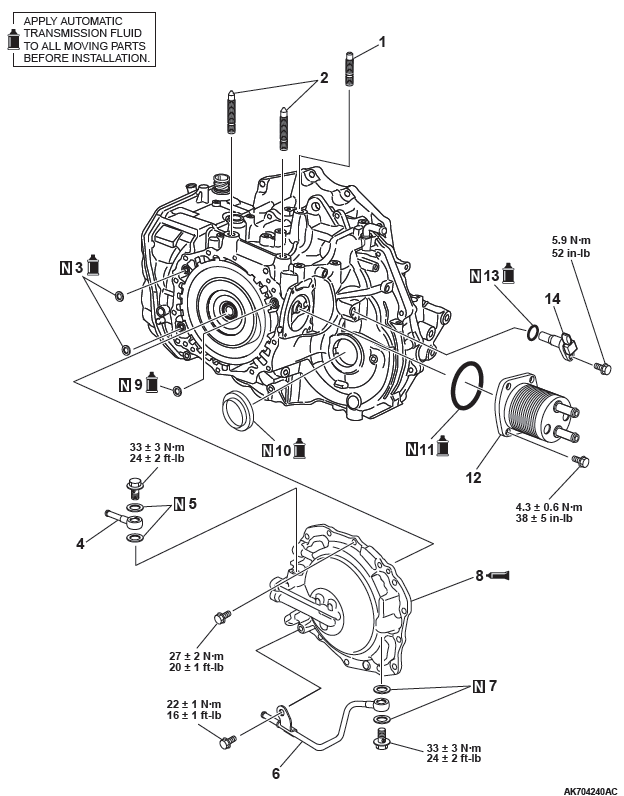

1. Stud bolt
2. Stud bolt
3. O-ring
4. Cooler tube (IN)
5. Washer
6. Cooler tube (OUT)
7. Washer
8. Side cover
9. O-ring
10. Side oil seal
11. O-ring
12. Water-cooled transmission fluid cooler
13. O-ring
14. Speed sensor

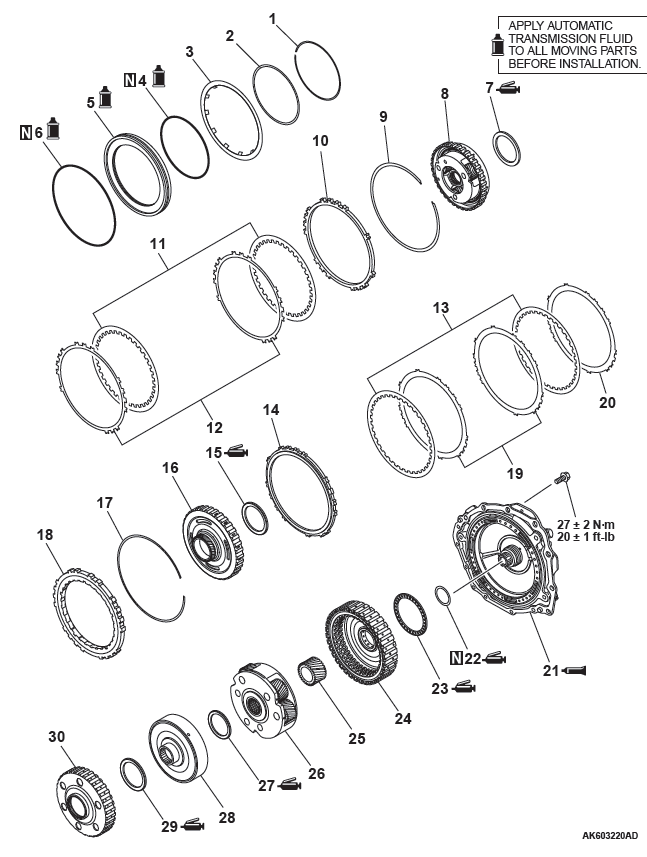

1. Snap ring
2. Diaphragm spring retainer
3. Diaphragm spring
4. D-ring
5. Low-reverse brake piston
6. D-ring
7. Needle bearing
8. RR carrier assembly
9. Snap ring
10. Retaining plate
11. Drive plate
12. Driven plate
13. Drive plate
14. Retaining plate
15. Needle bearing
16. RR sun gear (rear side)
17. Snap ring
18. One-way clutch
19. Driven plate
20. Retaining plate
21. Side cover
22. Spacer
23. Needle bearing
24. High clutch assembly
25. Reduction sun gear
26. Reduction carrier
27. Needle bearing
28. Reduction internal gear
29. Needle bearing
30. High clutch hub

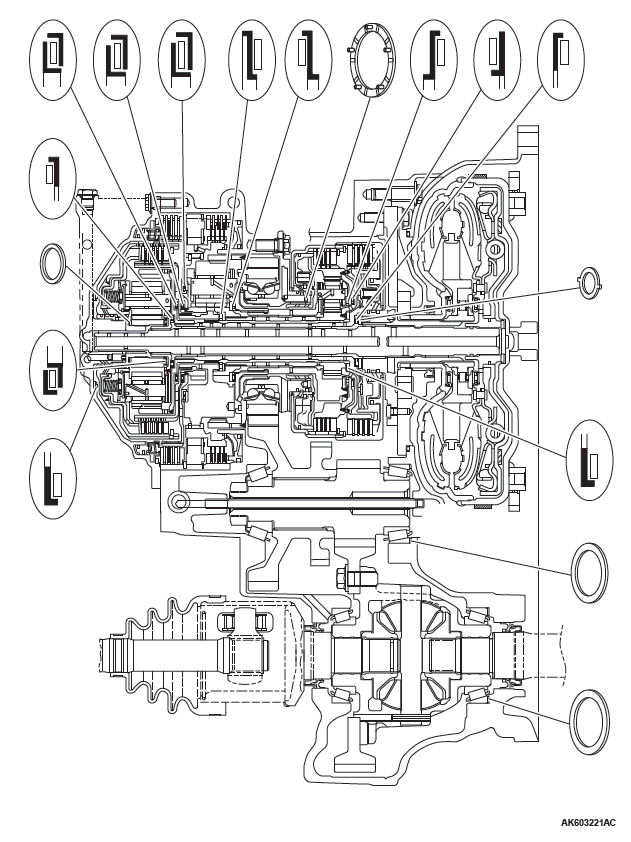

INSTALLATION LOCATION OF ADJUST SHIM, NEEDLE BEARING AND THRUST WASHER

Required special tools:

• MB992039: Slide hammer puller
• MB990590: Real axle shaft oil seal remover
• MB992195: Spring compressor
• MB991550: Bearing outer race installer
• MD998812: Installer cap
• MD998813: Installer-100
• MD998830: Installer adapter
• MB991445: Busing remover and installer base
• MB992198: Oil seal installer
• MB992197: Oil seal installer
• MB992075: Handle

DISASSEMBLY

CAUTION Do not disassemble parts other than those described in this volume.

1. Remove the transfer from the transaxle. <W6AJ>

2. Remove the RR roll stopper bracket and FR roll stopper bracket from the transaxle.

3. Remove the harness bracket from the transaxle.

4. Remove the oil filler tube and oil level gage from the transaxle.

5. Remove the control cable bracket and breather hose from the transaxle.

6. Remove the torque converter from the transaxle.

7. Remove the vehicle speed sensor from the transaxle case.

8. Remove the O-ring from the vehicle speed sensor.

9. Remove the turbine sensor from the transaxle case.

10.Remove the O-ring from the turbine sensor.

11.Remove the park/neutral position switch.

12.Remove the water-cooled transmission fluid cooler from the transaxle case.

13.Remove the O-ring from the water-cooled transmission fluid cooler.

14.Remove the pressure test port bolt from the transaxle case.

15.Remove the O-ring from the pressure test port bolt.

16.Remove the baffle plate from the converter housing.

17.Remove the O-ring from the baffle plate.

18.Remove stud bolts from the transaxle case.

19.Remove the cooler tube (IN) from the side cover.

20.Remove the cooler tube (OUT) from the side cover.

CAUTION Be careful not to break the terminal body.

21.Remove the snap ring from the terminal body and push the terminal body into the transaxle case.

22.Remove the control valve cover from the transaxle case.

23.Remove the control valve cover gasket from the transaxle case.

CAUTION

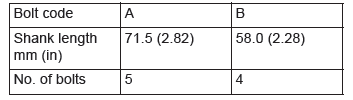

• Mounting bolt A is a hexagon head bolt.
• Mounting bolt B is a hexagon socket head bolt.

24.Remove control valve assembly mounting bolts A and B.

CAUTION Remove the control valve assembly by pulling it straight.

25.Remove the control valve assembly from the transaxle case.

CAUTION Be careful not to drop the manual valve.

26.Remove the manual valve from the control valve.

27.Remove the oil temperature sensor and bracket from the control valve.

28.Remove the bracket from the oil temperature sensor.

29.Remove the terminal assembly from the control valve.

30.Remove the detent spring.

31.Remove lip seals from the transaxle case.

CAUTION Do not damage the manual shaft oil seal mounting surface of the transaxle case when removing the manual shaft oil seal.

32.Using a flat-head screwdriver or equivalent, remove the manual shaft oil seal from the transaxle case.

33.Remove the transmission fluid adjusting bolt from the transaxle case.

34.Remove the O-ring from the ATF adjusting bolt.

CAUTION Mounting bolts are Torx E20 bolts.

35.Remove converter housing mounting bolts.

36.Lightly tap the converter housing with a plastic hammer or equivalent to remove.

CAUTION Do not damage the converter housing when removing the side oil seal.

37.Remove the side oil seal from the converter housing using a pin punch or equivalent. <F6AJ>

38.Using the special tools MB992039 and MB990590, remove the outer race of the reduction gear bearing from the converter housing.

39.Remove the reduction gear taper bearing shim from the converter housing.

40.Using the special tools MB992039 and MB990590, remove the outer race of the differential side bearing from the converter housing.

41.Remove the differential taper bearing shim from the converter housing.

42.Remove the O-ring from the input shaft.

43.Remove the oil pump assembly and oil strainer as one unit.

44.Remove the oil strainer from the oil pump assembly.

45.Remove the magnet from the oil strainer.

46.Remove the O-ring from the transaxle case.

47.Remove the input shaft.

48.Remove the bearing race and needle bearing from the 3-5 reverse clutch drum.

49.Remove the 3-5 reverse clutch assembly.

50.Remove the needle bearing from the FR sun gear.

51.Remove the FR sun gear.

52.Remove the needle bearing from the FR sun gear.

53.Remove the FR internal gear and FR carrier as one unit.

54.Remove the FR internal gear and needle bearing from the FR carrier.

55.Remove the low clutch assembly.

56.Remove the thrust washer from the drum support.

57.Remove the differential assembly.

58.Remove the pawl shaft plate.

59.Remove the return spring.

60.Remove the parking pawl shaft.

61.Remove the parking pawl.

62.Remove the reduction gear lubrication tube.

63.Remove the reduction gear assembly.

CAUTION Mounting bolts are Torx E16 bolts.

64.Remove the side cover.

65.Remove the spacer and needle bearing from the side cover.

66.Remove the O-ring from the transaxle case.

67.Remove the high clutch assembly.

68.Remove the reduction sun gear.

69.Remove the reduction carrier.

70.Remove the needle bearing from the reduction internal gear.

71.Remove the reduction internal gear from the high clutch hub.

72.Remove the needle bearing from the reduction internal gear.

73.Remove the high clutch hub.

74.Remove the needle bearing from the RR sun gear on the rear side.

75.Remove the RR sun gear on the rear side.

76.Remove the needle bearing from the RR carrier assembly.

CAUTION Check the plates for damage, deformation, surface burn or permanent strain. If faulty, replace.

77.Remove the 2-6 brake retaining plate, drive plate and driven plate from the transaxle case.

78.Using a flat-head screwdriver or equivalent, remove the snap ring.

79.Remove the one-way clutch and RR carrier assembly as one unit.

80.Separate the one-way clutch and RR carrier assembly.

81.Remove the needle bearing from the RR carrier assembly.

82.Using a flat-head screwdriver or equivalent, remove the snap ring.

CAUTION Check the plates for damage, deformation, surface burn or permanent strain. If faulty, replace.

83.Remove the low-reverse brake retaining plate, drive plate and driven plate.

84.Remove the RR sun gear on the front side.

85.Remove the bearing race from the RR sun gear on the front side.

86.Remove the needle bearing.

87.Using the special tool MB992195, remove the snap ring.

88.Remove the diaphragm spring retainer.

89.Remove the diaphragm spring.

CAUTION Do not feed air abruptly. Otherwise, the low-reverse brake piston may become stuck in the clutch drum.

90.Feed air through the oil hole as indicated in the illustration to remove the low-reverse brake piston from the transaxle case.

91.Remove D-rings from the low-reverse brake piston.

CAUTION Mounting bolts are Torx E18 bolts.

92.Remove the Output gear set.

93.Remove the O-ring from the transaxle case.

CAUTION Do not damage the transaxle case when removing the side oil seal.

94.Using a flat-head screwdriver or equivalent, remove the side oil seal from the transaxle case.

95.Using the special tools MB992039 and MB990590, remove the outer race of the reduction gear bearing from the transaxle case equivalent.

96.Using the special tools MB992039 and MB990590, remove the outer race of the differential side bearing from the transaxle case.

ASSEMBLY

CAUTION Never reuse the outer race.

1. Using the special tool MB991550, Install the outer race of the differential side bearing on the transaxle case.

CAUTION Never reuse the outer race.

2. Using the special tools MD998812, MD998813 and MD998830, install the outer race of the reduction gear bearing on the transaxle case.

CAUTION

• Apply transmission fluid to the bearing so that the interference can be adjusted in a smooth condition.
• Measure the end play at more than two locations and obtain the average of the measurements.

3. Measure an interference (A) of the reduction gear assembly in the following procedure. Refer to "SERVICE DATA" for the interference of the reduction gear assembly.

1. Install the reduction gear assembly on the transaxle case.

2. Set the outer race on the reduction gear bearing.

3. Measure distance L1 from the outer race to the end face of the transaxle case.

4. Place a block on the end face of the converter housing and measure distance L2 to the reduction gear taper bearing shim mounting surface.
5. Calculate distance L3 from the end face of the converter housing to the outer race of the reduction gear assembly from the following formula.

   L3 = L2 - Height of block

6. Calculate the thickness of the reduction gear taper bearing shim from the following formula.

   Thickness of reduction gear taper bearing shim = L3 - L1 + Interference
   Standard value: 0.16 − 0.22 mm (0.006 − 0.009 in) (For reduction gear preload)

CAUTION Never reuse the reduction gear taper bearing shim.

4. Install a selected reduction gear taper bearing shim on the converter housing. Refer to "SERVICE DATA" for selecting the reduction gear taper bearing shim.

CAUTION Never reuse the outer race.

5. Using the special tools MD998812, MD998813 and MD998830, install the outer race of the reduction gear bearing on the converter housing.

CAUTION

• Apply transmission fluid to the bearing so that the interference can be adjusted in a smooth condition.
• Measure the end play at more than two locations and obtain the average of the measurements.

6. Measure an interference (A) of the differential assembly in the following procedure. Refer to "SERVICE DATA" for the interference of the differential assembly.

1. Install the differential assembly on the transaxle case.

2. Set the outer race on the differential side bearing.

3. Measure distance L1 from the outer race to the end face of the transaxle case.

4. Measure distance L2 from the end face of the converter housing to the differential taper bearing shim mounting surface of the converter housing.
5. Calculate the thickness of the differential taper bearing shim from the following formula.

   Thickness of differential taper bearing shim = L2 - L1 + Interference
   Standard value: 0.19 − 0.25 mm (0.008 − 0.010 in) (For differential preload)

CAUTION Never reuse the differential taper bearing shim.

7. Install a selected differential taper bearing shim on the converter housing. Refer to "SERVICE DATA" for selecting the differential taper bearing shim.

CAUTION Never reuse the outer race.

8. Using the special tool MB991550 <F1CJA> or MB991445 <W1CJA>, Install the outer race of the differential side bearing on the converter housing.

CAUTION

• Never reuse the O-rings.
• Apply transmission fluid to the O-rings before installation.

9. Install an O-ring on the transaxle case.

CAUTION Mounting bolts are Torx E18 bolts.

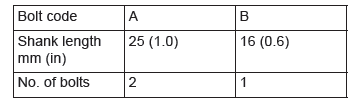

10.Install the output gear set. Refer to the following or the exploded view for the tightening torque.

Tightening torque: 41 +- 1 N*m (30 +- 1 ft-lb)

CAUTION

• Never reuse the D-rings.
• Apply transmission fluid to the D-rings before installation.

11.Install D-rings on the low-reverse brake piston.

CAUTION Apply transmission fluid to the low-reverse brake piston before installation.

12.Install the low-reverse brake piston on the transaxle case.

13.Install the diaphragm spring.

14.Install the diaphragm spring retainer.

15.Using the special tool MB992195, install the snap ring.

CAUTION Measure the end play at more than two locations and obtain the average of the measurements.

16.Measure the clearance (A) of the low-reverse brake using the following procedure. Refer to "SERVICE DATA" for the specified low-reverse brake clearance.

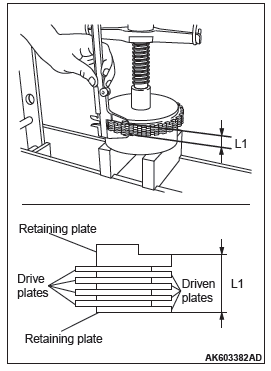

1. While compressing the drive plates, driven plates and retaining plate, measure the thickness L1 of the pack.

NOTE: If there is no appropriate plate, use the special tool, MD998917

2. Measure thickness L2 of the one-way clutch.

3. Measure distance L3 from the end face of the transaxle case to the low-reverse brake piston.

4. Temporarily assemble the snap ring, one-way clutch and snap ring to the transaxle case.
5. Measure distance L4 from the end face of the transaxle case to the one-way clutch, while pulling up the one-way clutch.
6. Remove the temporarily assembled snap ring, one-way clutch and snap ring from the transaxle case.
7. Calculate the clearance using the following formula. Clearance = L3 - (L1 + L2 + L4)
8. Select an appropriate retaining plate so that the specified clearance is obtained. Refer to "SERVICE DATA" for selecting the retaining plate.

   Standard value: 1.9 − 2.2 mm (0.07 − 0.09 in) (For low-reverse brake clearance)

CAUTION

• Apply vaseline to the needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

17.Install the needle bearing.

CAUTION Apply vaseline to the bearing race before installation.

18.Install the bearing race on the RR sun gear on the front side.

19.Install the RR sun gear on the front side.

CAUTION

• Apply vaseline to the needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

20.Install the needle bearing on the RR carrier assembly.

21.Install the RR carrier assembly.

CAUTION Ensure that the various plates are installed in the correct order.

22.Install the low-reverse brake drive plate, driven plate and selected retaining plate on the transaxle case.

23.Using a flat-head screwdriver or equivalent, install the snap ring.

24.Install the one-way clutch.

25.Using a flat-head screwdriver or equivalent, install the snap ring.

CAUTION Measure the end play at more than two locations and obtain the average of the measurements.

26.Measure the clearance (A) of the 2-6 brake using the following procedure. Refer to "SERVICE DATA" for the specified 2-6 brake clearance.

1. While compressing the drive plates, driven plates and retaining plate, measure thickness L1 of the pack.

NOTE: If there is no appropriate plate, use the special tool, MD998917

2. Measure distance L2 from the end face of the transaxle case to the snap ring.

CAUTION When measuring L3, use the same straight bar as used when L2 is measured.

3. Measure distance L3 from the end face of the side cover to the 2-6 brake piston.
4. Calculate the clearance using the following formula.

   Clearance = L2 - (L1 + L3)

5. Select an appropriate retaining plate so that the specified clearance is obtained. Refer to "SERVICE DATA" for selecting the retaining plate.

   Standard value: 1.9 − 2.2 mm (0.07 − 0.09 in) (For 2-6 brake clearance)

CAUTION

• Apply vaseline to the needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

27.Install the needle bearing on the RR carrier assembly.

28.Install the RR sun gear on the rear side.

CAUTION

• Apply vaseline to the needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

29.Install the needle bearing on the RR sun gear on the rear side.

30.Install the high clutch hub.

CAUTION

• Apply vaseline to the needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

31.Install the needle bearing on the reduction internal gear.

32.Install the reduction internal gear on the high clutch hub.

CAUTION

• Apply vaseline to the needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

33.Install the needle bearing on the reduction internal gear.

34.Install the reduction carrier.

35.Install the reduction sun gear.

CAUTION Measure the end play at more than two locations and obtain the average of the measurements.

36.Measure the reduction sun gear end play (A) using the following procedure. Refer to "SERVICE DATA" for the specified reduction sun gear end play (A).

1. Measure distance L1 from the reduction carrier to the end face of the transaxle case.

2. Measure distance L2 from the reduction carrier to the reduction sun gear.

3. Measure distance L3 from the end face of the side cover to the end face of the high clutch support area.
4. Calculate the end play using the following formula.

   End play = L3 - (L1 - L2) - Thickness of straight bar - Thickness of spacer

5. Select an appropriate spacer so that the specified end play is obtained. Refer to "SERVICE DATA" for selecting the spacer.

   Standard value: 0.4 − 0.7 mm (0.02 − 0.03 in) (For reduction sun gear end play)

CAUTION Measure the end play at more than two locations and obtain the average of the measurements.

37.Measure the side cover end play (A) in the following procedure. Refer to "SERVICE DATA" for the specified side cover end play (A).

1. Measure distance L1 from the reduction carrier to the end face of the transaxle case.

2. Measure distance L2 from the end face of the side cover to the needle bearing mounting surface.

3. Measure distance L3 from the contact surface with the needle bearing of the high clutch drum to the snap ring of the cancel cover in the following procedure.

1. Measure distance L4 from the high clutch drum edge to the snap ring of the cancel cover.

2. Measure height L5 of the high clutch drum.

3. Measure distance L6 from the underside of the high clutch drum to the contact surface with the needle bearing.
4. Calculate L3 using the following formula.

L3 = L5 - (L4 + L6) + Thickness of straight bar

4. Calculate the end play using the following formula.

   End play = L2 - (L1 + L3) - Thickness of needle bearing

5. Select an appropriate needle bearing so that the specified end play is obtained. Refer to "SERVICE DATA" for selecting the needle bearing.

   Standard value: 0.70 − 1.05 mm (0.028 − 0.041 in) (For side cover end play)

38.Install the high clutch assembly.

CAUTION Ensure that the various plates are installed in the correct order.

39.Install the 2-6 brake drive plate, driven plate and selected retaining plate on the transaxle case.

CAUTION

• Never reuse the O-rings.
• Apply transmission fluid to the O-rings before installation.

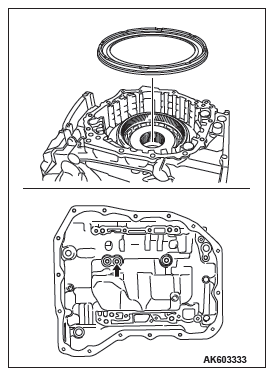

40.Install an O-ring on the transaxle case.

CAUTION

• Never reuse the spacer.
• Apply vaseline to the spacer and needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

41.Install an appropriate spacer and the needle bearing on the side cover.

CAUTION

• Completely degrease the FIPG-applied surface so that water and oil including the old sealant cannot adhere to the surface coated with the sealant. Never touch the degreased surface by hand.
• Make sure the starting point and the ending point are about the middle between the bolts.

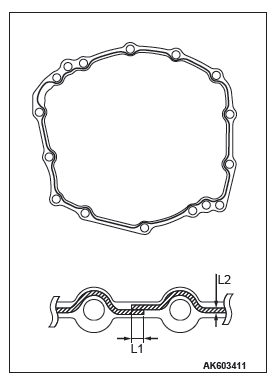

42.Apply the sealant to the transaxle case mounting surface of the side cover (almost the center line of the surface).

Specified sealant: Three Bond 1216B

CAUTION Mounting bolts are Torx E16 bolts.

43.Install the side cover on the transaxle case. Refer to the following or the exploded view for the tightening torque.

Tightening torque: 27 +- 2 N*m (20 +- 1 ft-lb)

CAUTION Measure the end play at more than two locations and obtain the average of the measurements.

44.Measure the drum support end play (A) using the following procedure. Refer to "SERVICE DATA" for the specified drum support end play (A).

1. Measure distance L1 between the end face of the RR internal gear splines and the oil pump mounting surface of the transaxle case.

2. Measure distance L2 between the thrust washer mounting surface of the drum support and the oil pump mounting surface of the transaxle case.

3. Measure distance L3 using the following procedure.

1. Install the FR carrier on the low clutch assembly.

CAUTION

• Apply vaseline to the needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

2. Install the needle bearing on the FR carrier.

3. Install the FR internal gear on the FR carrier.

CAUTION

• Apply vaseline to the needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

4. Install the needle bearing on the FR sun gear.

5. Install the FR sun gear.

CAUTION

• Apply vaseline to the needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

6. Install the needle bearing on the FR sun gear.

7. Install the 3-5 reverse clutch assembly.

8. Measure distance L3 between A and B.

4. Calculate the end play using the following formula.

   End play = L3 - (L1 - L2) - Thrust washer thickness

5. Select an appropriate thrust washer so that the specified end play is obtained. Refer to "SERVICE DATA" for selecting the thrust washer.

   Standard value: 0 − 0.35 mm (0 − 0.014 in) (For drum support end play)

45.Install the reduction gear assembly.

46.Install the reduction gear lubrication tube.

47.Install the parking pawl.

48.Install the parking pawl shaft.

49.Install the return spring.

50.Install the pawl shaft plate. Refer to the following or the exploded view for the tightening torque.

Tightening torque: 7.9 N*m (70 in-lb)

51.Install the differential gear assembly.

CAUTION

• Ensure that the claws on the thrust washer are correctly engaged with the holes in the drum support.
• Apply vaseline to the thrust washer before installation.

52.Install an appropriate thrust washer on the drum support.

53.Install the low clutch assembly.

54.Install the FR carrier on the low clutch assembly.

CAUTION

• Apply vaseline to the needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

55.Install the needle bearing on the FR carrier.

56.Install the FR internal gear on the FR carrier.

CAUTION

• Apply vaseline to the needle bearing before installation.
• Ensure that the needle bearing faces the correct direction.

57.Install the needle bearing on the FR sun gear.
