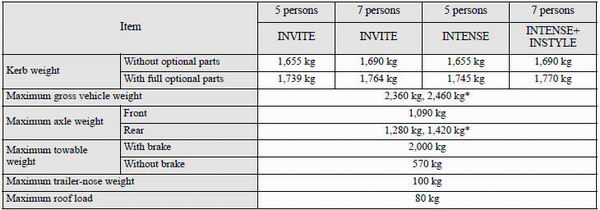

Mitsubishi Outlander: Vehicle weight
In case of trailer towing
NOTE:
● Trailer specifications indicate the manufacturer’s recommendation.
