Mitsubishi Outlander: Crankshaft Pulley

REMOVAL AND INSTALLATION

Pre-removal operation

Post-installation operation

Mitsubishi Outlander. Engine Mechanical

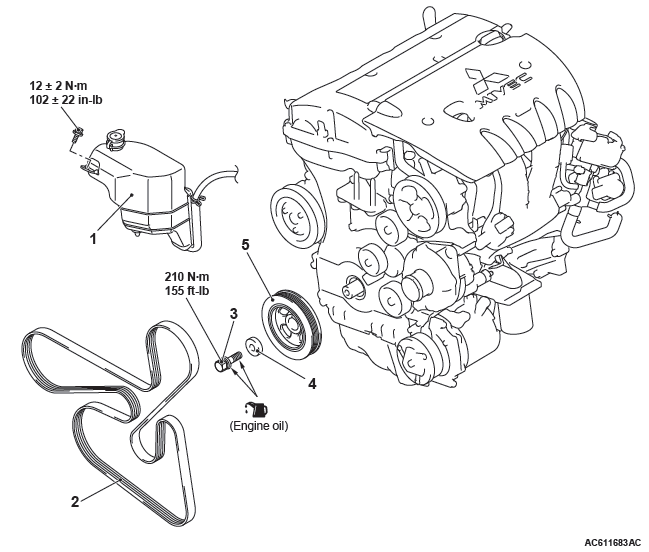

Removal steps

  1. Radiator condenser tank assembly
  2. Drive belt
  3. Crankshaft pulley center bolt
  4. Crankshaft pulley washer
  5. Crankshaft pulley

Required Special Tools:

REMOVAL SERVICE POINTS

RADIATOR CONDENSER TANK ASSEMBLY REMOVAL

Remove the radiator condenser tank assembly mounting bolt, and move the radiator condenser tank assembly to a place where it does not interfere with the drive belt removal and installation.

DRIVE BELT REMOVAL

Since the serpentine drive system with the drive belt auto-tensioner is used, the following operations will be required.

CAUTION

To reuse the drive belt, draw an arrow indicating the rotating direction on the back of the belt using chalk to install the same direction.

WARNING

Always work from above when releasing the tension of the auto-tensioner. When you try to gain access from underneath the vehicle, you will experience difficulty, thus causing the tool to be dropped off.

CAUTION

To work at the optimum angle, you must choose a most suitable box-type wrench is applied to the special tool.

WARNING

Be sure to set the box-type wrench and the special tool MB992278 to the hexagonal parts securely to prevent the tool from falling off because the tension of the auto-tensioner is high.

1. Install special tool MB992278 and a box-type wrench at the optimum angle.

2. Rotate the pulley bolt of the auto-tensioner counterclockwise.

3. Insert the L-shaped hexagon wrench into the auto-tensioner hole to fix the auto-tensioner.

4. Remove the drive belt.

Mitsubishi Outlander. Engine Mechanical

Mitsubishi Outlander. Engine Mechanical

CRANKSHAFT PULLEY CENTER BOLT/CRANKSHAFT PULLEY WASHER/CRANKSHAFT PULLEY REMOVAL

1. Hold the crankshaft pulley with special tools MB990767 and MD998719.

2. Loosen the crankshaft pulley center bolt and remove the crankshaft pulley center bolt, crankshaft pulley washer and crankshaft pulley.

Mitsubishi Outlander. Engine Mechanical

INSTALLATION SERVICE POINTS

CRANKSHAFT PULLEY/CRANKSHAFT PULLEY WASHER/CRANKSHAFT PULLEY CENTER BOLT INSTALLATION

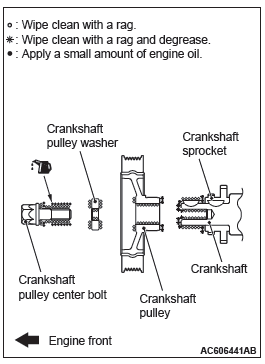

1. Wipe off the dirt on the crankshaft and the crankshaft pulley as shown in the figure using a rag.

2. Wipe off the dirt on the crankshaft sprocket, the crankshaft and the crankshaft pulley as shown in the figure using a rag, and then degrease them.

NOTE: Degrease them to prevent drop in the friction coefficient of the pressed area, which is caused by oil adhesion.

3. Install the crankshaft pulley.

4. Wipe off the dirt on the crankshaft pulley washer and the crankshaft pulley center bolt as shown in the figure using a rag.

5. Apply an adequate and minimum amount of engine oil to the threads of the crankshaft pulley center bolt and the lower area of the flange.

Mitsubishi Outlander. Engine Mechanical

6. Hold the crankshaft pulley with special tools MB990767 and MD998719 in the same manner as removal.

7. Tighten the crankshaft pulley center bolt to the specified torque.

Tightening torque: 210 N*m (155 ft-lb)

Mitsubishi Outlander. Engine Mechanical

DRIVE BELT INSTALLATION

CAUTION

Mitsubishi Outlander. Engine Mechanical

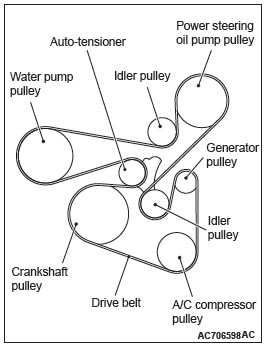

1. Install the drive belt to each pulley as shown in the figure.

Mitsubishi Outlander. Engine Mechanical

WARNING

Always work from above when releasing the tension of the auto-tensioner. When you try to gain access from underneath the vehicle, you will experience difficulty, thus causing the tool to be dropped off.

CAUTION

To work at the optimum angle, you must choose a most suitable box-type wrench is applied to the special tool.

WARNING

Be sure to set the box-type wrench and the special tool MB992278 to the hexagonal parts securely to prevent the tool from falling off because the tension of the auto-tensioner is high.

2. Install special tool MB992278 and a box-type wrench at the optimum angle.

3. Rotate the auto-tensioner counterclockwise and remove the L-shaped hexagon wrench fixing the auto-tensioner.

4. Apply tension to the drive belt while slowly turning the auto-tensioner clockwise.

Mitsubishi Outlander. Engine Mechanical

Mitsubishi Outlander. Engine Mechanical
