Mitsubishi Outlander: Multi-information display

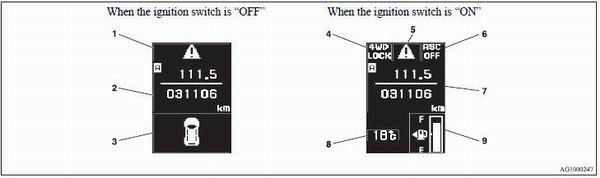

The following information is included on the multi-information display: warnings, odometer/tripmeter, service reminders, engine coolant temperature, fuel remaining, outside temperature, 4WD operation status, average and momentary fuel consumption, driving range, average speed and meter illumination.

It is also possible to change elements such as the language and units used on the multi-information display.

1- “!” mark display screen (when the ignition switch is “OFF”) → P. 3-6.

2- Information screen (when the ignition switch is “OFF”) → P. 3-6.

Interrupt display screen (when the ignition switch is “OFF”) → P. 3-8.

3- Door ajar warning display screen (when the ignition switch is “OFF”) → P. 3-10.

4- Drive mode indicator display screen → P. 3-12.

5- “!” mark display screen (when the ignition switch is “ON”) → P. 3-12.

6- Active Stability Control (ASC) OFF display screen → P. 3-12.

7- Information screen (when the ignition switch is “ON”) → P. 3-13.

Interrupt display screen (when the ignition switch is “ON”) → P. 3-19.

8- Outside temperature display screen → P. 3-20.

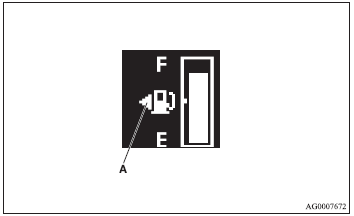

9- Fuel remaining display screen → P. 3-21.

NOTE:

● The fuel units, temperature units, display language, and other settings can be changed.

Refer to “Changing the function settings (when the ignition switch is “ON”)”.

● The display screen is different depending on whether the ignition switch is “OFF” or “ON”.

Refer to “Information screen (when the ignition switch is “OFF”)”.

Refer to “Warning display list (when the ignition switch is “OFF”)”.

Refer to “Information screen (when the ignition switch is turned from “OFF” to “ON”)”.

Refer to “Information screen (when the ignition switch is “ON”)”.

Refer to “Warning display list (when the ignition switch is “ON”)”.

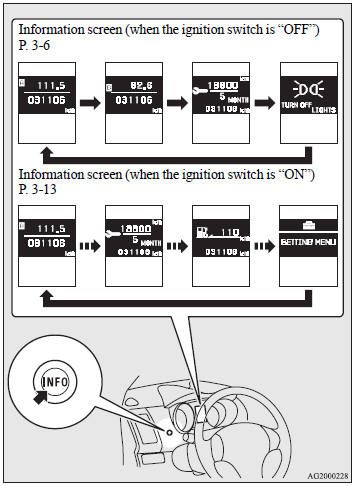

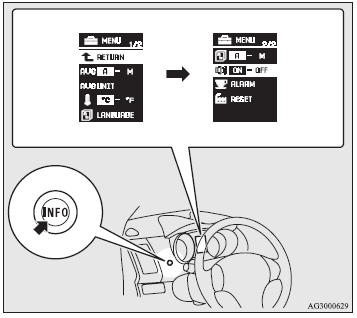

Multi-information meter switch

Each time the multi-information meter switch is operated, a sound is emitted and the multi-information display changes between information such as warnings, odometer/tripmeter, service reminder, engine coolant temperature, average and momentary fuel consumption, driving range, and average speed.

It is also possible to change elements such as the language and units used on the multi-information display by operating the multi-information meter switch.

“!” mark display screen (when the ignition switch is “OFF”) If you press the multi-information meter switch and return from the warning display screen to the previous screen, the “!” mark is displayed.

Refer to “To return to the screen displayed before the warning display”.

This mark is also displayed if there is another warning other than the one displayed. When the cause of the warning display is eliminated, the “!” mark goes out automatically.

NOTE:

● When the “!” mark is displayed, the warning display screen can be redisplayed on the information screen.

Refer to “Information screen (when the ignition switch is “OFF”)”.

Refer to “Information screen (when the ignition switch is “ON”)”.

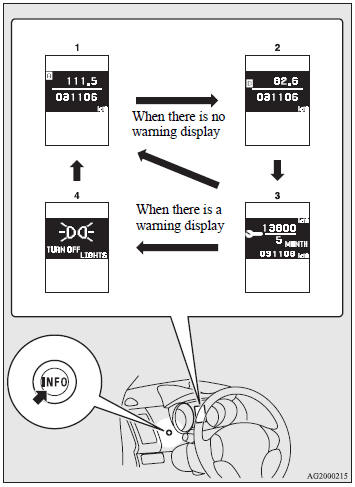

Information screen (when the ignition switch is “OFF”)

Each time you lightly press the multi-information meter switch, the display screen switches in the following order.

1- Odometer/Tripmeter.

2- Odometer/Tripmeter.

3- Service reminder.

4- Redisplay of a warning display screen.

Odometer / Tripmeter

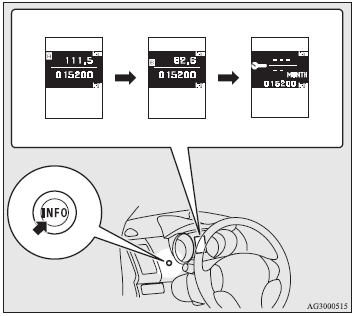

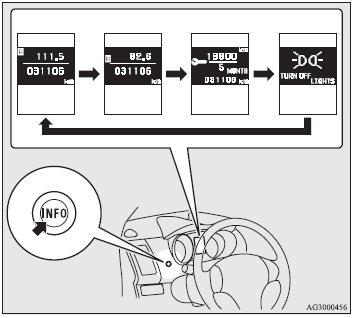

Each time you lightly press the multi-information meter switch, the display screen switches.

Odometer / Tripmeter→ Odometer / Tripmeter→

Service reminder → Redisplay of a warning display screen →

Odometer / Tripmeter

Odometer

The odometer indicates the distance travelled.

Tripmeter

The tripmeter indicates the distance travelled between two points.

Example usage of tripmeterand tripmeter It is possible to measure two currently travelled distances, from home using tripmeterand from a particular point on the way using tripmeter

To reset the tripmeter

To return the display to 0, hold down the multi-information meter switch for about 2 seconds or more. Only the currently displayed value will be reset.

Example

If tripmeteris displayed, only tripmeterwill be reset.

NOTE:

● If there is no warning display, the switching sequence is:

Odometer / Tripmeter→ Odometer / Tripmeter→

Service reminder → Odometer / Tripmeter

● Both tripmetersandcan count up to 9999.9 km (9999.9 miles).

When a tripmeter goes past 9999.9 km (9999.9 miles), it returns to 0.0 km (0.0 miles).

● When disconnecting the battery terminal, the memories of tripmeter displayand displayare erased, and their displays return to 0.0 km (0.0 miles).

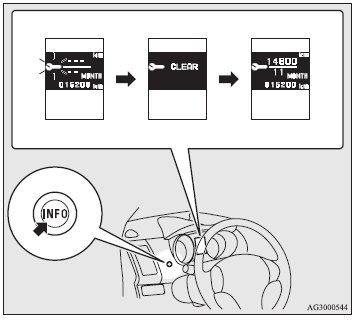

Service reminder

This displays the distance and number of months until the next periodic inspection.

Refer to “Service reminder”.

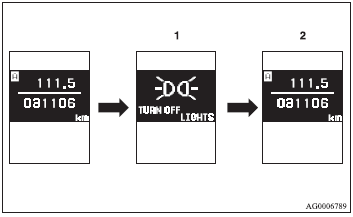

Interrupt display screen (when the ignition switch is “OFF”)

When there is information to be announced, such as lamp reminders, the buzzer sounds and the multi-information display switches to the warning display screen. Refer to the appropriate page and take the necessary measures.

When the cause of the warning display is eliminated, the warning display goes out automatically.

Refer to “Warning display list (when the ignition switch is “OFF”)”.

1- Information generated.

2- Cause eliminated.

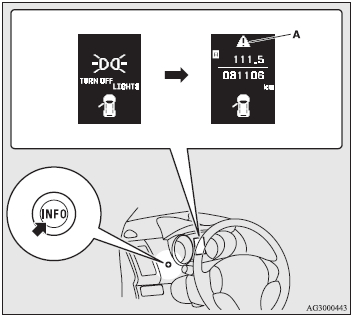

To return to the screen displayed before the warning display

Even if the cause of the warning display is not eliminated, you can return to the screen that was displayed before the warning display.

If you press the multi-information meter switch, the display screen switches to the screen that was displayed before the warning display and the “!” mark is displayed.

NOTE:

● Warning display screens with aormark displayed in the upper right of the screen can be switched. If you want to switch the display, press the multi-information meter switch as follows.

: Press lightly.

: Press for about 2 seconds or more.

Redisplay of a warning display screen

When the “!” mark is displayed, if you lightly press the multiinformation meter switch a few times, the warning display screen you switched from is redisplayed.

Refer to “Information screen (when the ignition switch is “OFF”)”.

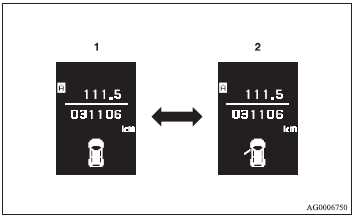

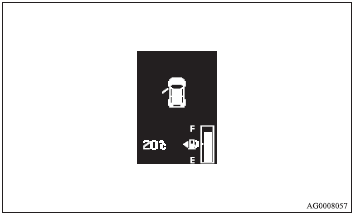

Door ajar warning display screen (when the ignition switch is “OFF”)

If any of the doors or the tailgate is not completely closed, this displays the open door or tailgate.

1- Doors and tailgate are closed.

2- Doors or tailgate is open.

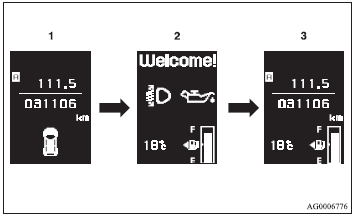

Information screen (when the ignition switch is turned from “OFF” to “ON”)

When the ignition switch is turned to the “ON” position, the display screen switches in the following order.

1- Screen when the engine is “OFF”.

2- System check screen.

3- Screen when the engine is “ON”.

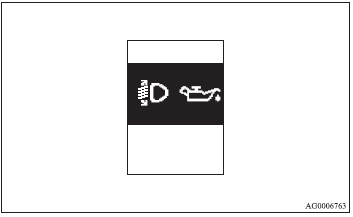

System check screen

When the ignition switch is turned to the “ON” position, the system check screen is displayed for about 4 seconds. If there is no fault in the “Oil pressure warning display”, “Headlamp (with beam position adjustment system) warning display (if so equipped)”, this screen is displayed when the engine is “ON”.

Refer to “Oil pressure warning display”.

Refer to “Headlamps (with beam position adjustment system) warning display”.

NOTE:

● The system check screen display varies depending on the customer’s equipment.

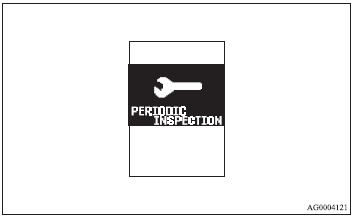

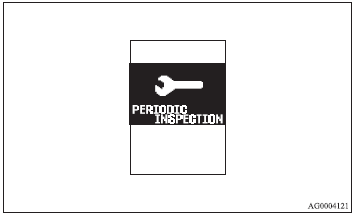

Service reminder

When the time for periodic inspection arrives, “PERIODIC INSPECTION” is displayed for a few seconds after the ignition switch “ON” screen. Refer to “Service reminder”.

Drive mode indicator display screen This displays the 4WD status.

If you select “4WD LOCK” mode with the drive mode selector, “4WD LOCK” is displayed; if you select “4WD AUTO” mode, “4WD” is displayed.

Nothing is displayed when 2WD mode is selected. Refer to “Drive mode selector”.

“!” mark display screen (when the ignition switch is “ON”) This is displayed when you press the multi-information meter switch and switch the warning display screen.

This mark is also displayed if there is another warning other than the one displayed.

When the cause of the warning display is eliminated, the “!” mark goes out automatically.

NOTE:

● When the “!” mark is displayed, the warning display screen can be redisplayed on the information screen.

Refer to “Information screen (when the ignition switch is “OFF”)”.

Refer to “Information screen (when the ignition switch is “ON”)”.

Active Stability Control (ASC) OFF display screen This is displayed when the active stability control (ASC) is turned off with the ASC OFF switch.

If there is a fault with the ASC, the ASC OFF display is shown.

Refer to “ASC OFF switch”.

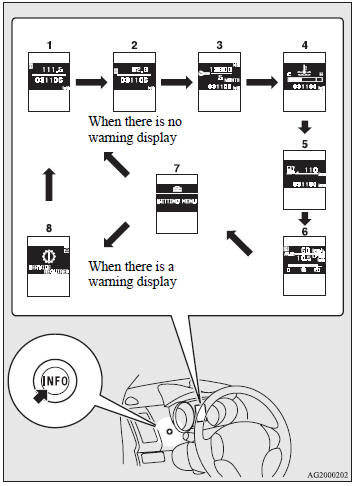

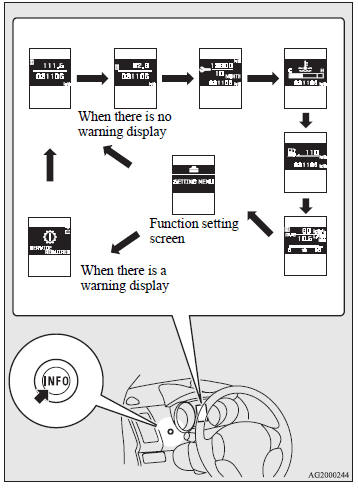

Information screen (when the ignition switch is “ON”)

Each time you lightly press the multi-information meter switch, the display screen switches in the following order.

1- Odometer / Tripmeter.

2- Odometer / Tripmeter.

3- Service reminder.

4- Engine coolant temperature display.

5- Driving range display.

6- Average speed display, average fuel consumption display, momentary fuel consumption display.

7- Function setting screen.

8- Redisplay of a warning display screen.

NOTE:

● While driving, the function setting screen is not displayed even if you operate the multi-information meter switch.

Always stop the vehicle in a safe place before operating.

Refer to “Changing the function settings (when the ignition switch is “ON”)”.

● When there is information to be announced, such as a system fault, the buzzer sounds and the screen display is switched.

Refer to “Interrupt display screen (when the ignition switch is “ON”)”.

Odometer / Tripmeter

The operation method is the same as when the ignition switch is “OFF”.

Refer to “Odometer / Tripmeter” for further details.

Service reminder This displays the distance and number of months until the next periodic inspection.

Refer to “Service reminder”.

Engine coolant temperature display This indicates the engine coolant temperature.

If the coolant becomes hot, the engine coolant temperature display screen will automatically appear andwill blink.

Pay careful attention to the engine coolant temperature display while you are driving.

CAUTION:

● If the engine is overheating, the display will be interrupted with a warning display.

Then the engine coolant temperature display screen will appear and will blink. In this case, the bar graph is on the red zone. lmmeditely park the vehicle in a safe place and take the required measures. Refer to “Engine overheating”.

Driving range display

This displays the approximate driving range (how many more kilometres or miles you can drive). When the driving range falls below approximately 50 km (30 miles), “---” is displayed.

Refuel as soon as possible.

NOTE:

● The remaining distance is based on the previous fuel consumption data. The actual distance will depend on the driving conditions (road conditions, how you drive, etc.).

When the battery terminal is disconnected, the previous fuel consumption data is erased. A value different from before may be displayed. Treat the distance displayed as just a rough guideline.

● When you refuel, the driving range display is updated.

However, if you only add a small amount of fuel, the correct value will not be displayed.

Fill with a full tank whenever possible.

● On rare occasions, the value displayed for the driving range may change if you are parked on an extremely steep incline. This is due to the movement of fuel in the tank and does not indicate any malfunction.

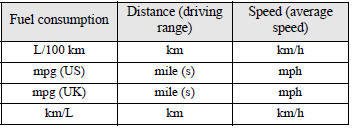

● The display setting can be changed to the preferred units (km or miles).

Refer to “Changing the function settings (when the ignition switch is “ON”)”.

Average speed display This displays the average speed from the last reset to the present time.

There are the following 2 mode settings.

For the method for changing the average speed display setting, refer to “Changing the function settings (when the ignition switch is “ON”)”.

Manual reset mode

● When the average speed is being displayed, if you hold down the multi-information meter switch, the average speed displayed at that time is reset.

● When the ignition switch is switched from “ACC” or “LOCK” to “ON”, the mode setting is automatically switched from manual to auto.

Auto reset mode

● When the average speed is being displayed, if you hold down the multi-information meter switch, the average speed displayed at that time is reset.

● If the ignition switch is at “ACC” or “LOCK” for about 4 hours or longer, the average speed display is automatically reset.

NOTE:

● “---” is displayed when the average speed cannot be measured.

● The initial (default) setting is “Auto reset mode”.

● The display setting can be changed to the preferred units (km/h or mph).

Refer to “Changing the function settings (when the ignition switch is “ON”)”.

● The memory of the manual reset mode or auto reset mode for the average speed display is erased if the battery is disconnected.

Average fuel consumption display This displays the average fuel consumption from the last reset to the present time.

There are the following 2 mode settings.

For information on how to change the average fuel consumption display setting, refer to “Changing the function settings (when the ignition switch is “ON”)”.

Manual reset mode

● When the average fuel consumption is being displayed, if you hold down the multi-information meter switch, the average fuel consumption displayed at that time is reset.

● When the ignition switch is switched from “ACC” or “LOCK” to “ON”, the mode setting is automatically switched from manual to auto.

Auto reset mode

● When the average fuel consumption is being displayed, if you hold down the multi-information meter switch, the average fuel consumption displayed at that time is reset.

● If the ignition switch is at “ACC” or “LOCK” for about 4 hours or longer, the average fuel consumption display is automatically reset.

NOTE:

● “---” is displayed when the average fuel consumption cannot be measured.

● The initial (default) setting is “Auto reset mode”.

● The average fuel consumption will depend on the driving conditions (road conditions, how you drive, etc.). The displayed fuel consumption may vary from the actual fuel consumption. Treat the fuel consumption displayed as just a rough guideline.

● The memory of the manual reset mode or auto reset mode for the average fuel consumption display is erased if the battery is disconnected.

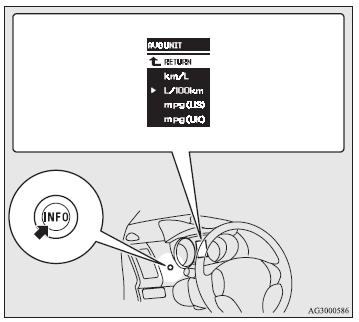

● The display setting can be changed to the preferred units {km/L, mpg (US), mpg (UK) or L/100 km.

Refer to “Changing the function settings (when the ignition switch is “ON”)”.

Momentary fuel consumption display While driving, this displays the momentary fuel consumption, using a bar graph.

NOTE:

● When the momentary fuel consumption cannot be measured, the bar graph is not displayed.

● The display setting can be changed to the preferred units {km/L, mpg (US), mpg (UK) or L/100 km}.

Refer to “Changing the function settings (when the ignition switch is “ON”)”.

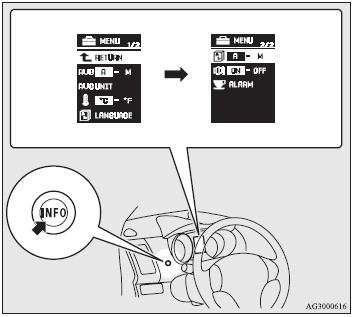

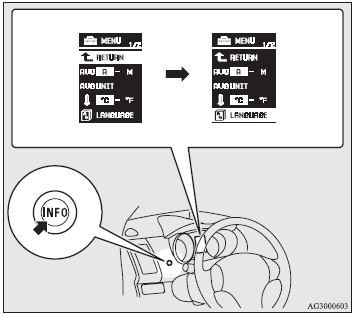

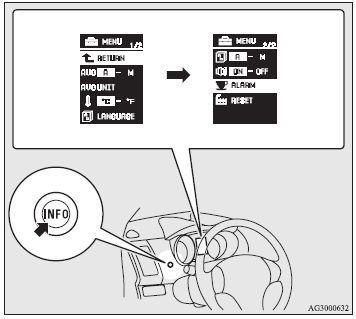

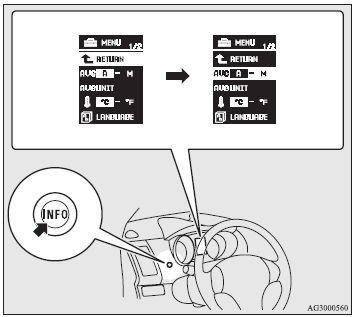

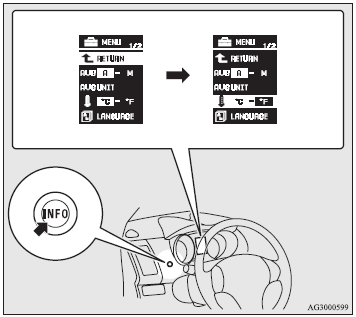

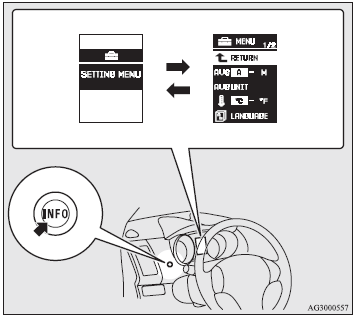

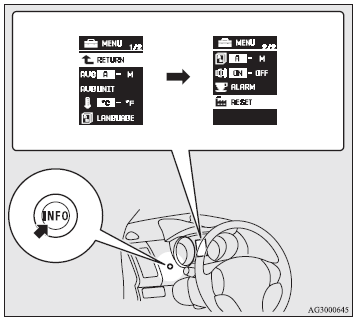

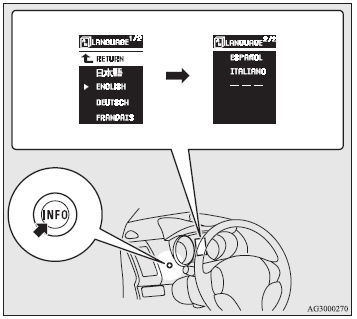

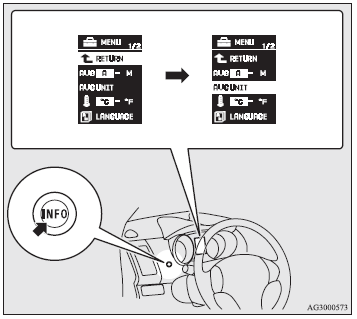

Function setting screen The “Display language”, “Temperature unit”, “Fuel consumption unit”, and “Average fuel consumption and speed reset method” settings can be modified as desired.

Refer to “Changing function settings (when the ignition switch is “ON”)” for further details.

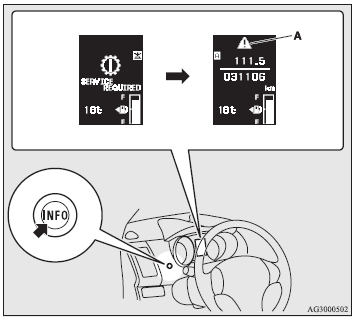

Interrupt display screen (when the ignition switch is “ON”)

Warning display

When there is information to be announced, such as a system fault, a sound is emitted and the information screen is switched to the warning display screen.

Refer to the warning list and take the necessary measures.

Refer to “Warning display list (when the ignition switch is “ON”)”.

When the cause of the warning display is eliminated, the warning display goes out automatically.

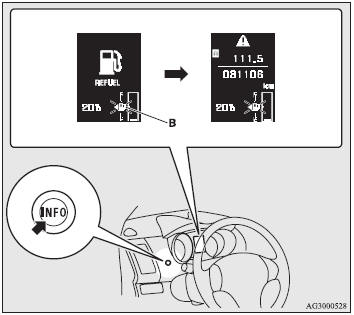

To return to the screen displayed before the warning display

Even if the cause of the warning display is not eliminated, you can return to the screen that was displayed before the warning display.

If you press the multi-information meter switch, the display screen switches to the screen that was displayed before the warning display and the “!” mark is displayed.

A- “!” mark

NOTE:

● Warning display screens with aormark displayed in the upper right of the screen can be switched. If you want to switch the display, press the multi-information meter switch as follows.

: Press lightly.

: Press for about 2 seconds or more.

Redisplay of a warning display screen

When the “!” mark is displayed, if you lightly press the multiinformation meter switch a few times, the warning display screen you switched from is redisplayed.

Other interrupt displays

The operation status of each system is displayed on the information screen.

Refer to the appropriate page in the warning display list for further details.

Refer to “Other interrupt displays (when the ignition switch is “ON”)”.

Outside temperature display screen This displays the temperature outside the vehicle.

NOTE:

● The display setting can be changed to the preferred units (°C or °F).

Refer to “Changing the function settings (when the ignition switch is “ON”)”.

● The outside temperature can be displayed in a range of -30°C to 50°C (-22°F to 122°F).

● Depending on factors such as the driving conditions, the displayed temperature may vary from the actual outside temperature.

Fuel remaining display screen

This displays the amount of fuel remaining.

CAUTION:

● Do not run out of fuel, or the catalytic converter may be adversely affected. If the warning display appears, refuel as soon as possible.

NOTE:

● It may take several seconds to stabilise the display after refilling the tank.

● If fuel is added with the ignition switch in the “ON” position, the fuel gauge may incorrectly indicate the fuel level.

Fuel lid mark

The arrow (A) indicates that the fuel tank filler is located on the left side of the body (refer to “Filling the fuel tank” on page 2).

Fuel remaining warning display

When the fuel is reduced to about 10 litres, the information screen switches to the interrupt display of the fuel remaining warning display, and themark (B) on the fuel remaining display flashes slowly (about once per second). After a few seconds, the information screen returns from the fuel remaining warning display to the previous screen.

When the fuel is reduced further to about 5 litres, the information screen switches to the fuel remaining warning display and themark (B) on the fuel remaining display flashes quickly (about twice per second).

NOTE:

● On inclines or curves, the display may be incorrect due to the movement of fuel in the tank.

Service reminder

Shows the time until the periodic inspection every 12 months (15,000 km or 9,000 miles ).

“---” is displayed to alert the driver when the inspection time has arrived.

1. Displays the time until the next periodic inspection.

NOTE:

● The distance is shown in units of 100 km (100 miles). The time is shown in units of months.

2. Alerts the driver when the inspection time has arrived. We recommend you to consult a MITSUBISHI MOTORS Authorised Service Point.

At that time, when the ignition switch is switched from “OFF” to “ON”, “PERIODIC INSPECTION” is displayed for a few seconds on the information screen.

3. After your vehicle is inspected at an authorised MITSUBISHI MOTORS dealer, it displays the time until the next periodic inspection.

To reset

The “---” display can be reset while the ignition switch is “OFF”. When the display is reset, the time until the next periodic inspection is displayed and “PERIODIC INSPECTION” is no longer displayed when the ignition switch is switched from “OFF” to “ON”.

1. When you lightly press the multi-information meter switch a few times, the information screen switches to the service reminder display screen.

2. Press and hold the multi-information meter switch for about 2 seconds or more to display “ ” and make it flash (if there is no operation for about 10 seconds with flashing, the display returns to the previous screen).

3. Lightly press the multi-information meter switch while the icon is flashing to change the display from “---” to “CLEAR”. After this, the time until the next periodic inspection will be displayed.

CAUTION:

● The customer is responsible for making sure that periodic inspection and maintenance are performed.

Inspections and maintenance must be performed to prevent accidents and malfunctions.

NOTE:

● “---”display cannot be reset when the ignition switch is “ON”.

● When “---” is displayed, after a certain distance and a certain period of time, the display is reset and the time until the next periodic inspection is displayed.

● If you accidentally reset the display, we recommend you to consult a MITSUBISHI MOTORS Authorised Service Point.

Door ajar warning display screen (when the ignition switch is “ON”)

If any of the doors or the tailgate is not completely closed, this displays the open door or tailgate.

If the vehicle speed exceeds approximately 8 km/h (5 mph) while a door is ajar, the warning lamp will flash while a buzzer sounds 4 times. This notifies the driver that a door is ajar.

CAUTION:

● Before moving your vehicle, check that the warning lamp is OFF.

NOTE:

● In order to prevent the battery from running down, if you leave the door open a long time, the lamp goes out automatically.

Refer to “Lamps (room lamps, etc.) auto-cutout function”.

Changing the function settings (when the ignition switch is “ON”)

The multi-information display average fuel consumption and speed reset mode, fuel consumption unit, temperature unit, display language, language cooperative control, buzzer sound, and the time until the “REST REMINDER” display appears can be modified as desired.

Also, all settings can be returned to their factory settings.

Changing function settings

1. Stop the vehicle in a safe place.

Firmly apply the parking brake and put the gearshift lever into the “N” (Neutral) position.

2. Lightly press the multi-information meter switch a few times to switch the information screen to the function setting screen.

Refer to “Information screen (when the ignition switch is “ON”)”.

CAUTION:

● For safety, stop the vehicle before operating.

While driving, even if you operate the multi-information meter switch, the function setting screen is not displayed.

3. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.

NOTE:

● To return the menu screen to the function setting screen, press and hold the multi-information meter switch for about 2 seconds or more.

● If no operations are made within about 15 seconds of the menu screen being displayed, the display returns to the function setting screen.

4. Select the item to change on the menu screen and change to the desired setting. Refer to the following items for further details on the operation methods.

Refer to “Changing the reset mode for average fuel consumption and average speed”.

Refer to “Changing the fuel consumption display unit”.

Refer to “Changing the temperature unit”.

Refer to “Changing the display language”.

Refer to “Changing the language cooperative control”.

Refer to “Operation sound setting”.

Refer to “Changing the time until “REST REMINDER” is displayed”.

Refer to “Returning to the factory settings”.

Changing the reset mode for average fuel consumption and average speed

The mode conditions for the average fuel consumption and average speed display can be switched between “Auto reset” and “Manual reset”.

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.

Refer to “Changing function settings”.

2. Lightly press the multi-information meter switch to select “AVG (average fuel consumption and average speed setting)”.

3. Press and hold the multi-information meter switch for about 2 seconds or more to switch in sequence from A (Auto reset mode) ¨ M (Manual reset mode) ¨ A (Auto reset mode).

The setting is changed to the selected mode condition.

Manual reset mode

• When the average fuel consumption and average speed are being displayed, if you hold down the multi-information meter switch, the average fuel consumption and average speed displayed at that time are reset.

• When the ignition switch is switched from “ACC” or “LOCK” to “ON”, the mode setting is automatically switched from manual to auto.

Auto reset mode

• When the average fuel consumption and average speed are being displayed, if you hold down the multi-information meter switch, the average fuel consumption and average speed displayed at that time are reset.

• If the ignition switch is at “ACC” or “LOCK” for about 4 hours or longer, the average fuel consumption display and average speed display are automatically reset.

NOTE:

● The memory of the manual reset mode or auto reset mode for the average speed display is erased if the battery is disconnected.

● The initial (default) setting is “Auto reset mode”.

Changing the fuel consumption display unit

The display unit for fuel consumption can be switched. The distance, speed, and amount units are also switched to match the selected fuel consumption unit.

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.

Refer to “Changing function settings”.

2. Lightly press the multi-information meter switch to select “AVG UNIT (fuel consumption display setting)”.

3. Press and hold the multi-information meter switch for about 2 seconds or more to display “AVG UNIT” (fuel consumption display unit setting).

4. Lightly press the multi-information meter switch to switch in sequence from km/L → L/100 km → mpg (US) → mpg (UK) → RETURN → km/L.

5. Press and hold the multi-information meter switch for about 2 seconds or more to change the setting to the selected unit.

NOTE:

● The display units for the driving range, the average fuel consumption, the average speed and the momentary fuel consumption are switched, but the units for the indicating needle (speedometer), the odometer and the tripmeter will remain unchanged.

● The memory of the unit setting is erased if the battery is disconnected, and it returns automatically to L/100km.

The distance and speed units are also switched in the following combinations to match the selected fuel consumption unit.

Changing the temperature unit

The display unit for temperature can be switched.

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.

Refer to “Changing function settings”.

2. Lightly press the multi-information meter switch to select (temperature unit setting)”.

3. Press and hold the multi-information meter switch for about 2 seconds or more to switch in sequence from °C →

°F → °C.

The setting is changed to the selected temperature unit.

NOTE:

● If the battery is disconnected, the unit setting is erased from memory and is automatically set to °C.

Changing the display language

The language of the multi-information display can be switched.

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.

Refer to “Changing function settings”.

2. Lightly press the multi-information meter switch to select “LANGUAGE” (language setting).

3. Press and hold the multi-information meter switch for about 2 seconds or more to display “LANGUAGE” (language setting).

4. Lightly press the multi-information meter switch to switch in sequence from JAPANESE → ENGLISH → GERMAN → FRENCH → SPANISH → ITALIAN → “---” (do not display warning message) → RETURN → JAPANESE.

5. If you hold down the multi-information meter switch for about 2 seconds or more, the setting is changed to the selected language.

NOTE:

● The memory of the language setting is erased if the battery is disconnected, and it returns automatically to ENGLISH.

● If “---” is selected in the language setting, a warning message is not displayed when there is a warning display or interrupt display.

Changing the language cooperative control

The language used in Mitsubishi Multi-Communication System (MMCS) (if so equipped) or the Hands-free Bluetooth® (if so equipped) cellular phone interface system with voice recognition can be changed automatically to the same language as that shown in the multi-information display.

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.

Refer to “Changing function settings”.

2. Lightly press the multi-information meter switch to select (language cooperative control). (Located on MENU 2/2).

3. Press and hold the multi-information meter switch to switch in sequence from A (language cooperation enabled) → M (language cooperation disabled) → A (language cooperation enabled).

The setting is changed to the selected condition.

NOTE:

● The memory of the language cooperative control is erased if the battery is disconnected, and it returns automatically to A (language cooperation enabled).

● The language display modified with the language setting can be switched in the following manner.

• When A (language cooperation enabled) has been selected with the language cooperative control, the language for Mitsubishi Multi-Communication System (MMCS) (if so equipped) or the Hands-free Bluetooth® (if so equipped) cellular phone interface system with voice recognition is automatically changed to the language selected for the multi-information display.

• When M (language cooperation disabled) has been selected with the language cooperative control, the language for Mitsubishi Multi-Communication System (MMCS) (if so equipped) or the Hands-free Bluetooth® (if so equipped) cellular phone interface system with voice recognition is not automatically changed to the language selected for the multi-information display.

Operation sound setting

You can turn off the operation sounds of the multi-information meter switch.

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.

Refer to “Changing function settings”.

2. Lightly press the multi-information meter switch to select (operation sound setting). (Located on MENU 2/2).

3. Press and hold the multi-information meter switch for about 2 seconds or more to switch in sequence from ON (operation sound on) ¨ OFF (operation sound off) ¨ ON (operation sound on).

The setting is changed to the selected condition.

NOTE:

● The memory of the operation sound setting is erased if the battery is disconnected, and it returns automatically to ON (operation sound on).

● The operation sound setting only deactivates the operation sound of the multi-information meter switch. The warning display and other sounds cannot be deactivated.

Changing the time until “REST REMINDER” is displayed

The time until the display appears can be changed.

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.

Refer to “Changing function settings”.

2. Lightly press the multi-information meter switch to select “ALARM” (rest time setting) (located on MENU 2/2).

3. Press and hold the multi-information meter switch for about 2 seconds or more to display “ALARM” (rest time setting).

4. Lightly press the multi-information meter switch to select the time until the display.

5. Press and hold the multi-information meter switch for about 2 seconds or more, the setting is changed to the selected time.

NOTE:

● If the battery is disconnected, the unit setting is erased from memory and is automatically set to OFF.

● The drive time is reset when the ignition switch is turned off.

Returning to the factory settings

All of the function settings can be returned to their factory settings.

1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.

Refer to “Changing function settings”.

2. Lightly press the multi-information meter switch to select “RESET” (returning to the factory settings) (located on MENU 2/2).

3. When you press and hold the multi-information meter switch for about 5 seconds or more, the buzzer sounds and all of the function settings are returned to the factory settings.

NOTE:

● The factory settings are as follows.

• Average fuel consumption and average speed reset mode: A (Auto reset) • Fuel consumption display unit: L/100 km • Temperature unit: °C (Centigrade) • Display language: ENGLISH • Cooperative language setting: A • Operation sounds: ON (Operation sounds on) • “REST REMINDER” display: OFF

READ NEXT:
