Mitsubishi Outlander 2007-2013 Service Manual / Brakes and Steering / Power Steering
General Information
- The steering wheel has three spokes and is equipped with SRS (Supplemental Restraint System).
- The steering column has a shock absorbing mechanism and a tilt steering mechanism.
- The steering system uses a vane oil pump with a fluid flow control system, so that steering effort varies with engine speed.

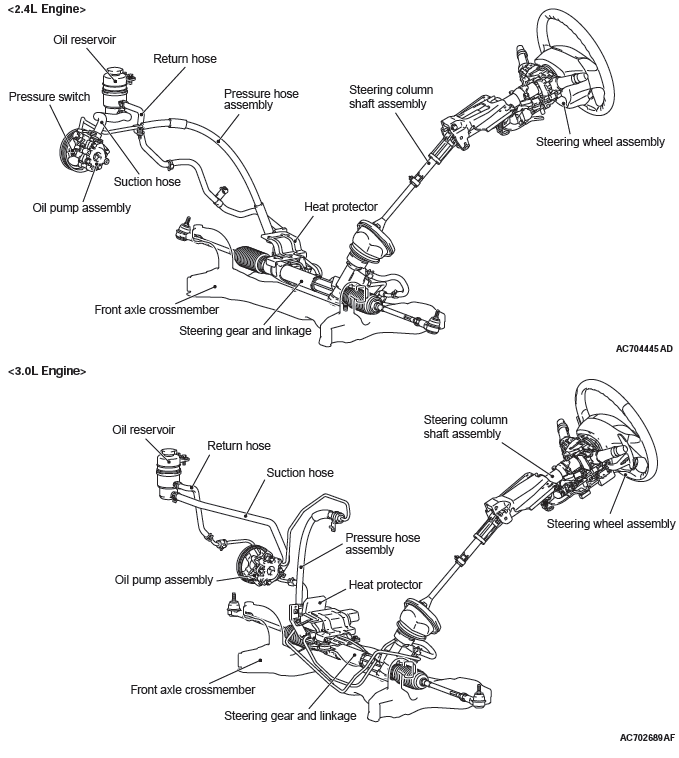

<2.4L Engine>
<3.0L Engine>
Specifications

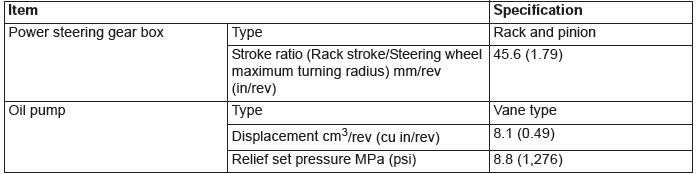

GENERAL SPECIFICATIONS

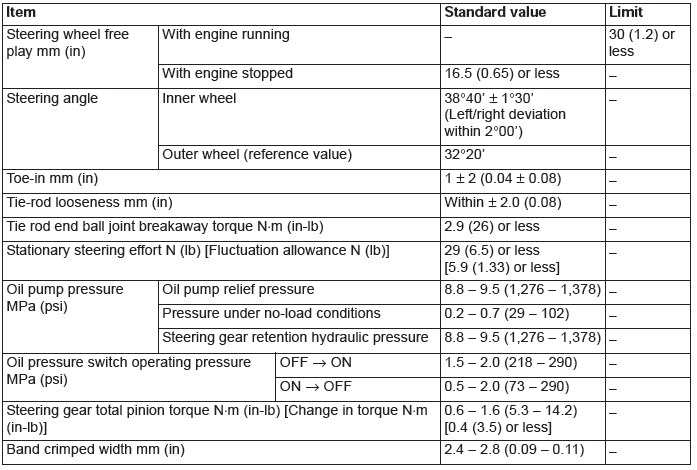

SERVICE SPECIFICATIONS

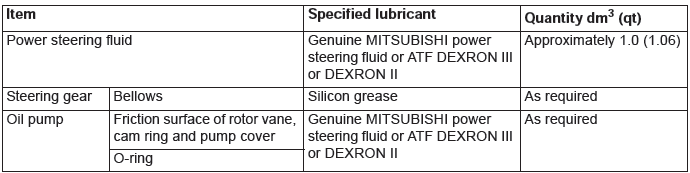

LUBRICANTS
SEALANT
- Power Steering Diagnosis
- On-vehicle Service
- Steering Wheel
- Steering Column Shaft Assembly
- Power Steering Gear Box and Linkage
- Power Steering Oil Pump Assembly
- Power Steering Hoses
READ NEXT:
Power Steering Diagnosis
INTRODUCTION TO POWER STEERING DIAGNOSIS
Hydraulic power steering is used for all vehicles.
Faults in the power steering can include excessive
play of the steering wheel, difficult steering wheel
ope
On-vehicle Service
STEERING WHEEL FREE PLAY CHECK
1. With the engine running (hydraulic pressure applied),
position the front wheel in the straight ahead direction.
2. Measure the side to side steering wheel play until
Steering Wheel
REMOVAL AND INSTALLATION
WARNING
Before removing the steering wheel and driver's air bag module
assembly, refer to
GROUP 52B, Service Precautions and Driver's Air Bag Module and Clock Spring.
Wh
